Microsoft Planner JDBC Driver

Documentation for Microsoft Planner drivers found within JDBC Driver Pack

Microsoft Planner

Building the JDBC URL

After installing the license, open the connection management page by running java -jar kingswaysoft.jdbc.jar. Enter the required details to generate the JDBC connection URL. Click Test Connection to test the generated URL, or Copy to Clipboard to copy the connection string for use in your application.

Note: If the license is not installed, you can still use the connection manager to generate a JDBC URL; however, the 'Test Connection' feature will be disabled.

General Page

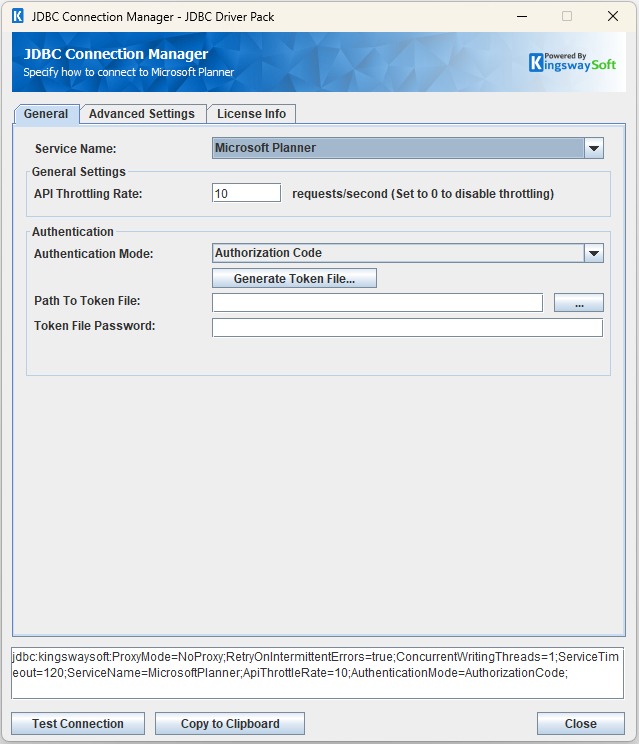

The General Page of the Microsoft Planner Connection Manager allows you to specify general settings for the connection.

connectionmanage

General Settings
API Throttling Rate

The API Throttling Rate will limit the number of requests that can be sent per second. Set this value to 0 to disable API throttling.

Authentication
Authentication Mode

The Authentication Mode option allows you to specify the authentication mode when working with the Microsoft Planner service. Available options are:

  • Authorization Code
  • Certificate
  • Client Credentials

Authentication Methods for Microsoft Planner

Authorization Code

A saved token file and token password can be used to establish a connection. If you wish to generate a new token file, click Generate Token File to go through the token generation process, save the token file locally, and use the specified token password to connect.

Authentication
Path To Token File

The path to the token file on the file system.

Token File Password

The Password for the token file.

Generate Token File

This button completes the OAuth authentication process to generate a new token.

  • Client ID: The Client ID option allows you to specify the unique ID which identifies the application making the request.
  • Client Secret: The Client Secret option allows you to specify the client secret belonging to your app.
  • Redirect URL: The Redirect URL option allows you to specify the Redirect URL to complete the authentication process.
  • Scope: The Scope option allows you to specify the scope of the token file being generated.
  • PKCE (Enhanced Security): The PKCE (Proof Key for Code Exchange) option can be enabled for a PKCE app type. It ensures that the client that initiates the OAuth flow is the same client that completes the flow.
Certificate

A saved certificate file and certificate password can be used to establish a connection. Set the path to the certificate file, as well as the certificate password, the Tenant ID and the Client ID to authenticate and connect.

NOTE: The certificate file only supports the PFX format. For newly generated certificates, a PEM file is also generated. This PEM file needs to be configured in the portal.

Authentication
Tenant ID

Specify the Tenant ID to be used when establishing the connection to the Microsoft Planner API.

Client ID

Specify the Client ID to be used when establishing the connection to the Microsoft Planner API.

Path To Certificate

The path to an existing certificate file.

Certificate Password

The password for the specified certificate file.

Client Credentials

Users can choose to use their Tenant ID, Client ID and Client Secret to establish a connection.

Authentication
Tenant ID

Specify the Tenant ID to be used when establishing the connection to the Microsoft Planner API.

Client ID

Specify the Client ID to be used when establishing the connection to the Microsoft Planner API.

Client Secret

The Client Secret option allows you to specify the client secret that will be used when establishing a connection to the Microsoft Planner API.

Test Connection

After completing the configuration for all required connection and authentication settings in the JDBC Connection Manager, you can use the Test Connection button to validate your configuration and verify API requests will authenticate successfully.

Advanced Settings Page

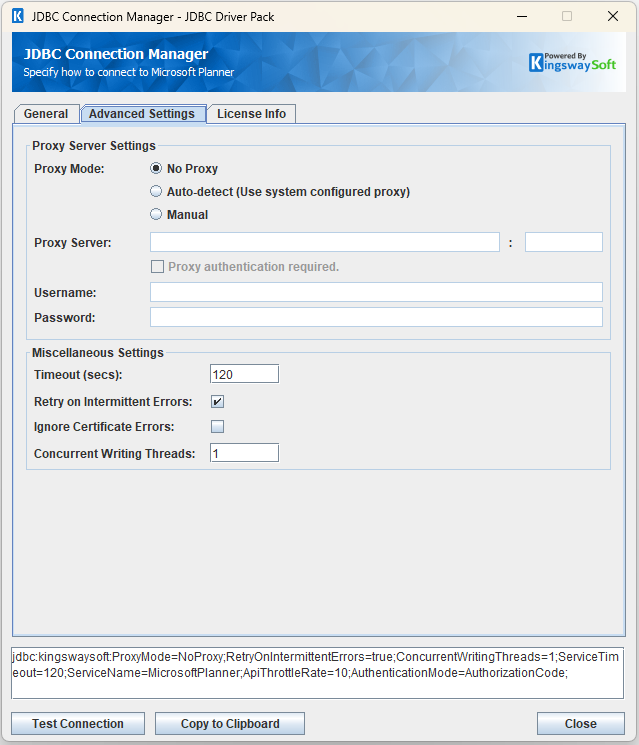

The Advanced Settings page allows you to specify advanced settings for the connection.

connectionmanage

Proxy Server Settings
Proxy Mode

The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Use system configured proxy)
  • Manual
Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Miscellaneous Settings
Timeout (secs)

The Timeout (secs) option allows you to specify a timeout value in seconds for the connection. The default value is 120 seconds. Specify 0 for infinite timeout.

Retry on Intermittent Errors

The retry on intermittent errors determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to the target server.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.

Note: When this option is enabled, it applies to all HTTP-based SSL connections in the same job process.

Concurrent Writing Threads

This option can be used to set the number of threads to be used during write operations. This can improve performance during large-volume write operations.

Using the JDBC Driver

This section provides examples that use JDBC classes such as Connection, Statement, and ResultSet to manage interactions with Microsoft Planner data. It covers regular statements and prepared statements for complex or frequently executed queries.

Executing Statements

After you have connected from your code, you can execute SQL statements using the Statement class. For connection details, see Connecting with DriverManager or Connecting with DataSource. For parameterized statements, see Executing Prepared Statements. Refer to the Additional Bindings section for information on how to execute SQL statements for additional binding entities.

SELECT

Use the Statement class's generic execute method or the executeQuery method to execute SQL statements that return data. To retrieve the results of a query, call the getResultSet method of the Statement.

String sql = "SELECT * FROM planner/plans WHERE plan_id = 't6lGZVU2Zk--e6WKKkYVO2UAAMzb'";
try {
    ResultSet resultSet = statement.executeQuery(sql);
    LOGGER.info(resultSet.toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

INSERT

Use either the generic execute method or the executeUpdate method of the Statement class to execute an INSERT operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the inserted data's ID, exceptions raised during execution, and details of the affected data.

String sql = "INSERT INTO planner/plans (title, container.containerId, container.type) VALUES "
           + "('TEST JDBC INSERT PLAN','e8bb0ea8-da9b-4f3f-a7b8-b2a9e10150cb', 'group')";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata,haserrors
q5UrG65FYkSHxrZ0V2RDm2UAECFS,null,null,{"title":"TEST JDBC INSERT PLAN","container":{"containerId":"e8bb0ea8-da9b-4f3f-a7b8-b2a9e10150cb","type":"group"}},false

UPDATE

Use either the generic execute method or the executeUpdate method of the Statement class to execute an UPDATE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the updated data's ID, exceptions raised during execution, and details of the affected data.

String sql = "UPDATE planner/plans SET title = 'JDBC Updated Plan Title' "
           + "WHERE if_match = 'W/\"JzEtUGxhbiAgQEBAQEBAQEBAQEBAQEBASCc=\"' "
           + "AND plan_id = 't6lGZVU2Zk--e6WKKkYVO2UAAMzb'";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata,haserrors
null,null,null,{"title":"JDBC Updated Plan Title"},false

DELETE

Use either the generic execute method or the executeUpdate method of the Statement class to execute a DELETE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the deleted data's ID, exceptions raised during execution, and details of the affected data.

String sql = "DELETE FROM planner/tasks WHERE if_match = 'W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"' AND task_id = 's5MFFE0zMUOKS_sg3jhz92UAGJQB'";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata,haserrors
null,null,null,null,false

Executing Prepared Statements

Using a PreparedStatement can improve performance when you need to execute a SQL statement multiple times with different parameters. Unlike a Statement object, a PreparedStatement object is provided with a SQL statement when it is created, which can then be executed with different values each time. This special type of statement is derived from the more general Statement class.

Below are the steps outlining how to execute a prepared statement:

Creating and Executing a Prepared Statement
  1. Create a PreparedStatement
  2. Set Parameters
    • Declare parameters by calling the corresponding setter method of the PreparedStatement.
    • NOTE: The parameter indices start at 1.
  3. Execute the PreparedStatement
    • Use the generic execute or executeUpdate method of the PreparedStatement.
  4. Retrieve Results
    • Call the getResultSet method of the PreparedStatement to obtain the query results, which are returned as a ResultSet.
  5. Iterate Over the Result Set
    • Use the next method of the ResultSet to iterate through the results. To obtain column information, use the ResultSetMetaData class. Instantiate a ResultSetMetaData object by calling the getMetaData method of the ResultSet.

SELECT

Use the PreparedStatement class's generic execute method or the executeQuery method to execute SQL statements that return data.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the retrieved data.

String sql = "SELECT * FROM planner/plans WHERE plan_id = ?";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "t6lGZVU2Zk--e6WKKkYVO2UAAMzb");
    ps.execute(query);
    while (ps.getResultSet().next()) {
        for (int i = 1; i <= ps.getResultSet().getMetaData().getColumnCount(); i++) {
            LOGGER.info(ps.getResultSet().getMetaData().getColumnLabel(i) + "="
            + ps.getResultSet().getString(i));
        }
    }
} catch (SQLException e) {
    LOGGER.error(e);
}

INSERT

Use either the generic execute method or the executeUpdate method of the PreparedStatement class to execute an INSERT operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the ID of inserted data, exceptions raised during execution, and the data affected by the insertion.

String sql = "INSERT INTO planner/tasks (planId, title) VALUES (?, ?)";

try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "t6lGZVU2Zk--e6WKKkYVO2UAAMzb");
    ps.setString(2, "JDBC PreparedStatement Test Task");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

id,errorcode,errormessage,processdata,haserrors
fB6EYAY-xUOTbIWd82Ish2UAOMXQ,null,null,{"planId":"t6lGZVU2Zk--e6WKKkYVO2UAAMzb","title":"JDBC PreparedStatement Test Task"},false

UPDATE

Use either the generic execute method or the executeUpdate method of the PreparedStatement class to execute an UPDATE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the ID of updated data, exceptions raised during execution, and the data affected by the update.

String sql = "UPDATE planner/tasks SET title = ?, percentComplete = ? "
           + "WHERE task_id = ? "
           + "AND (etag != null AND if_match = ?)";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "JDBC PreparedStatement Updated Task");
    ps.setInt(2, 50);
    ps.setString(3, "TUhJjr-YOU2NSKyA31FI4WUAKeVb");
    ps.setString(4, "W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

id,errorcode,errormessage,processdata,haserrors
null,null,null,{"title":"JDBC PreparedStatement Updated Task","percentComplete":50},false

DELETE

Use either the generic execute method or the executeUpdate method of the PreparedStatement class to execute a DELETE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the deleted data's ID, exceptions raised during execution, and details of the affected data.

String sql = "DELETE FROM planner/tasks WHERE task_id = ? "
           + "AND if_match = 'W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBASCc=\"')";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "TUhJjr-YOU2NSKyA31FI4WUAKeVb");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

id,errorcode,errormessage,processdata,haserrors
null,null,null,null,false

Metadata Discovery

This section provides examples on how to retrieve table and column metadata using the getTables, getColumns, and getPrimaryKeys methods from the DatabaseMetaData interface. These are essential for discovering database structures.

Tables

The getTables method from the DatabaseMetaData interface can be used to retrieve a list of tables.

This method only retrieves tables that are not write-only.

To get a list of tables that includes write-only tables, query the table system.tables.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getTables(null, null, null, null);
    LOGGER.info("\r\n" + rs.toString());
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,TABLE_TYPE,REMARKS
null,null,drive/root/createdByUser/planner/tasks,Table,null
null,null,groups/planner/plans,Table,null
null,null,me/planner/tasks,Table,null
null,null,planner/buckets,Table,null
null,null,planner/buckets/tasks,Table,null
null,null,planner/plans,Table,null
null,null,planner/plans/buckets,Table,null
null,null,planner/plans/details,Table,null
null,null,planner/plans/tasks,Table,null
null,null,planner/tasks,Table,null
null,null,planner/tasks/assignedToTaskBoardFormat,Table,null
null,null,planner/tasks/bucketTaskBoardFormat,Table,null
null,null,planner/tasks/details,Table,null
null,null,planner/tasks/progressTaskBoardFormat,Table,null
null,null,system.columns,Table,null
null,null,system.tables,Table,null
null,null,users/planner/tasks,Table,null

The getTables method returns the following metadata columns:

Column Name Data Type Description
TABLE_CAT String The catalog that contains the table.
TABLE_SCHEM String The schema of the table.
TABLE_NAME String The name of the table.
TABLE_TYPE String The type of the table (e.g., TABLE or VIEW).
REMARKS String An optional description of the table.

Columns

Use the getColumns method of the DatabaseMetaData interface to retrieve detailed information about database columns.

This method returns columns only for tables that are not write-only.

To get columns for write-only tables, query the table system.columns.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getColumns(null, null, "planner/plans", null);
    LOGGER.info(rs.toString());
} catch (SQLException e) {
    e.printStackTrace();
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,COLUMN_NAME,DATA_TYPE,TYPE_NAME,COLUMN_SIZE,BUFFER_LENGTH,DECIMAL_DIGITS,NUM_PREC_RADIX,NULLABLE,REMARKS,COLUMN_DEF,SQL_DATA_TYPE,SQL_DATETIME_SUB,CHAR_OCTET_LENGTH,ORDINAL_POSITION,IS_NULLABLE,IS_AUTOINCREMENT,IS_GENERATEDCOLUMN,DTS_TYPE
null,null,planner/plans,@odata.context,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,@odata.etag,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,container.containerId,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,container.type,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,container.url,12,VARCHAR,4000,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.application,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.applicationInstance,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.conversation,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.conversationIdentityType,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.device,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.encrypted,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.guest,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.onPremises,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.phone,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdBy.user,12,VARCHAR,0,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,createdDateTime,93,TIMESTAMP,null,null,0,0,null,null,null,93,null,null,null,null,null,null,DT_DBTIMESTAMP
null,null,planner/plans,id,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,owner,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,planner/plans,title,12,VARCHAR,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR

The getColumns method returns the following columns:

Column Name Data Type Description
TABLE_CAT String The database name.
TABLE_SCHEM String The table schema.
TABLE_NAME String The table name.
COLUMN_NAME String The column name.
DATA_TYPE Integer The data type represented by a constant value from java.sql.Types.
TYPE_NAME String The data type name used by the driver.
COLUMN_SIZE Integer The length in characters of the column or the numeric precision.
BUFFER_LENGTH Integer The buffer length.
DECIMAL_DIGITS Integer The column scale or number of digits to the right of the decimal point.
NUM_PREC_RADIX Integer The radix, or base.
NULLABLE Integer Whether the column can contain null as defined by the following JDBC DatabaseMetaData constants: columnNoNulls (0) or columnNullable (1).
REMARKS String The comment or note associated with the object.
COLUMN_DEF String The default value for the column.
SQL_DATA_TYPE Integer Reserved by the specification.
SQL_DATETIME_SUB Integer Reserved by the specification.
CHAR_OCTET_LENGTH Integer The maximum length of binary and character-based columns.
ORDINAL_POSITION Integer The position of the column in the table, starting at 1.
IS_NULLABLE String Whether a null value is allowed: YES or NO.
SCOPE_CATALOG String The catalog of the table referenced by a reference attribute (null if DATA_TYPE is not REF).
SCOPE_SCHEMA String The schema of the table referenced by a reference attribute (null if DATA_TYPE is not REF).
SCOPE_TABLE String The name of the table referenced by a reference attribute (null if DATA_TYPE is not REF).
SOURCE_DATA_TYPE Short The source type of a distinct type or user-defined REF type (null if DATA_TYPE is neither DISTINCT nor a user-defined REF).
IS_AUTOINCREMENT String Whether the column value is assigned by Microsoft Planner in fixed increments.
IS_GENERATEDCOLUMN String Whether the column is generated: YES or NO.
DTS_TYPE String Microsoft Planner attribute type.

Primary Keys

The getPrimaryKeys method in the DatabaseMetaData interface is used to retrieve metadata about primary keys for a given table in Microsoft Planner.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet resultSet = connection.getMetaData().getPrimaryKeys(null, null, "planner/plans");
    LOGGER.info("\r\n" + resultSet.toString());
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_NAME,PRIMARY_COLUMN_NAME
planner/plans,id

The getPrimaryKeys method returns the following columns:

Column Name Data Type Description
TABLE_NAME String The name of the table that contains the primary key.
PRIMARY_COLUMN_NAME String The name of the column that serves as the primary key for the table.

Connection Settings

Connection Setting Type Default Value Description
ApiThrottleRate Integer 10 The maximum number of API requests a client can make to the server within a specific time period, defined in requests per second.
AuthenticationMode String "AuthorizationCode" AuthenticationType specifies the method used to authenticate when connecting to Microsoft Planner RESTful API.
BulkPollingInterval Integer 5 How often the component checks the job status until the job status is COMPLETE.
CacheExpirationTime Integer 30 Defines the expiration time for cache. A value of 0 disables caching.
CertificatePassword String "" The password used to access the keystore file.
ClientId String "" The ClientId used to access Microsoft Planner.
ClientSecret String "" The ClientSecret used to access Microsoft Planner.
ConcurrentWritingThreads Integer 1 The number of threads for executing operations in parallel. A value of 0 will disable multi threading.
ConnectionTimeout Integer 30 ConnectionTimeout is the maximum amount of time the program will wait to set up a connection to the Microsoft Planner API.
IgnoreCertificateErrors Boolean false Specifies whether to verify the certificate when connecting to Microsoft Planner. If certificate verification is not required, you can set this value to 'true'.
ContinueOnErrors Boolean false Determines if the program continues executing SQL statements after encountering an error.
LogFileSize String "10485760" A string specifying the maximum size in bytes for a log file.
LogLevel String "INFO" The logging level for the JDBC driver.
LogPath String "./jdbcLogs" The directory where log files are stored.
OemKey String "" The OEM license key.
Password String "" The password used to authenticate the user.
PathToCertificate String "" PathToCertificate specifies the file path where the keystore file for connecting to Microsoft Planner RESTful API is located.
PathToTokenFile String "" The path to the token file.
ProxyMode String NoProxy The strategy employed to address proxy usage. Strategies are case-sensitive and include "NoProxy" which will not use a proxy, "AutoDetect" which will attempt to use the system configured proxy, and "Manual" which will use the proxy set through ProxyServer and ProxyServerPort. By default, it is set to 'NoProxy'.
ProxyPassword String "" The password to be used to authenticate to the proxy.
ProxyServer String "" The host of the proxy server.
ProxyServerPort Integer 0 The port of the proxy server.
ProxyUsername String "" The username to be used to authenticate to the proxy.
ReadBatchSize Integer 100 ReadBatchSize is used to set how many records can be read from Microsoft Planner in a single call. In Microsoft Planner, a value of 0 will result in the $top parameter not to be included in requests.
ResultPath String "" The path where the execution result files are saved.
RetryOnIntermittentErrors Boolean true The RetryOnIntermittentErrors parameter indicates whether to retry the connection when it might occasionally fail due to temporary issues.
SaveResult Boolean false The SaveResult parameter indicates whether to save the execution results to a file.
ServiceName String "" The ServiceName refers to the name of the service API selected by the user.
ServiceTimeout Integer 120 The ServiceTimeout is the timeout to receive the full response from Microsoft Planner API. The default timeout is 120 seconds.
Ssl Boolean false SSL indicates whether the connection is SSL-enabled or supports SSL encryption.
Suppress404NotFoundError Boolean true When set to true, if a query results in an HTTP 404 error, a result set will still be created. When set to false, an error is logged instead and no result set is created.
TenantId String "" The Azure Tenant ID used to access Microsoft Planner.
TokenPassword String "" The password used to read the token file.
UserName String "" The user account used to connect to the server.
WriteBatchSize Integer 20 WriteBatchSize is used to set how many records can be written to Microsoft Planner in a single call.
