Generic OData Driver

Building the JDBC URL

After installing your license, launch the connection management page by navigating to the directory containing the driver JAR and running the command java -jar kingswaysoft.jdbc.jar.

Once launched, select JDBC Connection Manager. Enter the required details, and the program will automatically generate your JDBC connection URL. You can then use the Test Connection button to verify the URL and the Copy to Clipboard button to easily use the connection string in your application.

Note: If no license is installed, the connection manager can still generate a JDBC URL, but the Test Connection feature will be disabled.

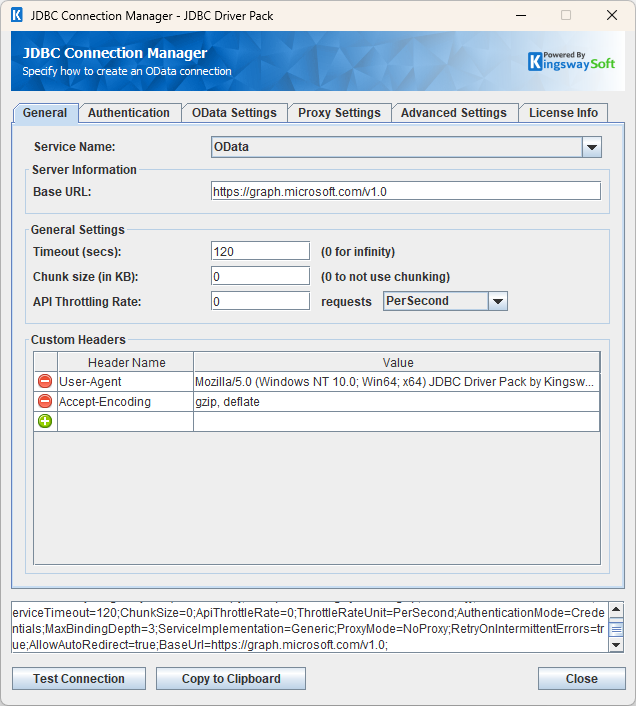

General Page

The General page on the Generic OData Connection Manager allows you to specify the general settings for the connection.

connectionmanage

Server Information

Base URL: The URL field represents the address of the web service to connect to.

General Settings

Timeout (secs)

The Timeout (secs) option allows you to specify a timeout value in seconds for the connection. The default value is 120 seconds. Specify 0 for an infinite timeout.

Chunk Size (in KB)

The chunk size to use when sending web requests. When set to 0, chunking will not be used.

API Throttling Rate

The API Throttling Rate will limit the number of requests that can be sent per the unit of time selected. This is useful when accessing APIs with request limits.

To set the unit of time for throttling, expand the dropdown by requests. This will also set the connection property ThrottleRateUnit.

Custom Headers

The Custom Headers grid will allow HTTP headers to be entered that will be used for each request.

Authentication Methods for the Generic OData Driver

AWS Signature

AWS Signature Settings

Signature Version: Specify between Version 4 and Version 2.

Version 4

Provide an Access Key, Access Secret, Session Token, Service Name, and select an AWS region to establish a connection.

AWS Signature Settings

Access Key: The Access key to be used for authentication.
Access Secret: Provide the Access secret to be used for authentication.
Session Token: The Session Token option allows you to specify a temporary security token, known as temporary security credentials. Note this property is optional.
AWS Region: The AWS Region for the web service endpoint.
Service Name: The AWS service name to be provided.

Version 2

Provide an Access Key, Access Secret, Session Token, and select a Signature Method to establish a connection.

AWS Signature Settings

Access Key

The Access key to be used for authentication.

Access Secret

Provide the Access secret to be used for authentication.

Session Token

The Session Token option allows you to specify a temporary security token, known as temporary security credentials. Note this property is optional.

Signature Method

Choose between available Signature Methods

HMAC-SHA1
HMAC-SHA256

Azure OAuth

Authentication Mode: Azure OAuth

OAuth Type

The OAuth Type can be chosen between the below.

Certificate
Client Credentials

Authorization URL

Endpoint where a user is redirected to authenticate and grant permission to access protected resources.

Certificate

Use a Tenant ID, Client ID, and Scope together with a saved Certificate File and Certificate Password to establish a connection.

NOTE: Only PFX format is supported for the certificate file. When certificates are newly generated, a PEM file is also created; configure this PEM file in the portal.

Authentication

Tenant ID: Provide tenant identifiers such as the tenant ID or domain name for your Microsoft organization. A default value "common" is used when no value is provided.
Client ID: The Application ID of the Azure Active Directory App.
Path to Certificate: Provide the path to the certificate file to use for authentication. Click the ellipses button to browse their file system for the certificate.
Certificate Password: Provide the password to the certificate file.
Scope: Set Scope to identify the set of resources and operations that the selected certificate permits. The value passed for the scope parameter in this request should be the resource identifier (Application ID URI) of the resource you want, affixed with the .default suffix.

Client Credentials

Use a Tenant ID, Client ID, and Scope with a Client Secret to establish a connection.

Azure OAuth

Tenant ID: Provide tenant identifiers such as the tenant ID or domain name for your Microsoft organization. A default value "common" is used when no value is provided.
Client ID: The Application ID of the Azure Active Directory App.
Client Secret: The Application Secret that you generated for your app in the app registration portal.
Scope: Set Scope to identify the set of resources and operations that an access token permits. The value passed for the scope parameter in this request should be the resource identifier (Application ID URI) of the resource you want, affixed with the .default suffix.

Basic

Use your instance URL with a Username and Password to establish a connection.

Authentication Mode: Basic

Basic authentication adds a basic authentication header to web requests. The HTTP Connection Manager will append the Base64 encoded string value representing your username and password to the text "Basic" in the request Authorization header.

Credentials

Username: The Username to use when accessing the web service.
Password: The Password to use when accessing the web service.

Bearer Token

Use a Bearer Token to establish your connection. This token lets you authenticate requests using a static access key.

Authentication Mode: Bearer Token

Bearer Token

The Bearer Token allows requests to authenticate using a static access key. HTTP Connection Manager will append the token value to the text "Bearer " in the required format to the request Authorization header.

Credentials (Basic, Digest, NTLM)

Use your instance URL along with your Domain, Username, and Password to establish a connection.

Authentication Mode: Credentials

Domain: The domain or host to authenticate against.
Username: The Username option allows you to specify the user account that you want to use when connecting to the specified server.
Password: The Password option allows you to specify the password for the above user account to log in to the specified server.

Custom Token

Use a custom token obtained via a CURL command. The CURL command sends a request and returns a response. The TokenStrategy and TokenExpression define the path to the desired value. Click the Test Custom Token button to open a window where you can inspect the CURL file and test the token request. The token can then be used by specifying @Connection[AccessToken] in the supported connection properties.

Custom Access Token Settings

CURL Source

The CURL Source contains two allows options:

File: Provide a local file for the curl command.
Manually Enter: Fill in the command text.

CURL File

Provide the location to a file that contains a token request CURL command.

CURL Command Text

Provide the CURL command to get the authorization token.

Find Token Strategy

Provide the find token strategy by specifying one from the below.

JPath
XPath
Regex
Header

Find Token Expression

Provide the JPath, XPath, expression, etc. that can be used to extract the token value from the response.

Token Expiry

Manually specify the token expiry in seconds.

Test Custom Token

Click on this button to open up the below screen in which you can parse through the CURL File and test the token request.

Note: The Custom Access Token works by making a web request to retrieve an authorization token using a CURL command from a file. After the request is made the token is extracted from the response using one of the 'Find Token Strategies' and a 'Find Token Expression'. Once the token is extracted from the response it will be available for use by specifying '@Connection[AccessToken]' in supported connection properties or supported component properties. The token is re-retrieved after the specified expiry time in seconds.

Google Service Account

Use a JSON Key File Path along with a Scope to establish a connection.

Google Service Account

The Service Account option allows you to specify the account which will be used to connect to your Google service.

Certificate Location (Only for Certificate type OAuth type)

The certificate location can be either of the below.

Store
File System

Path to File System

Provide the path to the certificate file to use for authentication. Click the ellipses button to browse their file system for the certificate. This option is available when you choose File System as Certificate Location.

Note: The component supports Azure Blob Shared Access Signature (SAS) URL in the certificate path.

Certificate Password

Provide the password to the certificate file. This option is available when you choose File System as the Certificate Location.

Certificate Thumbprint

This option allows you to specify the thumbprint of the selected certificate to authenticate using your Google Service Account.

Scope

Set Scope to identify the set of resources and operations that an access token permits.

JWT

Use a JWT (JSON Web Token) to establish a connection. You can import the token using the Import Claims From Existing JWT button or enter it manually in the provided table.

Authentication Mode: JWT

Import Claims from Existing JWT...: Clicking on this button will open up the below page to import claims from existing JWT.

JWT Claims

The grid contains the following columns

Claim Name
Claim Value
Header (checkbox)

JWT Secret

Provide the JWT Secret.

Kerberos

Use your instance URL along with your Domain, Username, and Password to establish a connection.

Authentication Mode: Kerberos

Domain: The domain or host to authenticate against.
Username: The Username option allows you to specify the user account that you want to use when connecting to the specified server.
Password: The Password option allows you to specify the password for the above user account to log in to the specified server.

None

Use this option when your request does not require authorization.

OAuth 1

Establish a connection using the OAuth 1.0 method by selecting a signature method and entering the required credentials.

For HMAC signature methods, provide a Consumer Key, Consumer Secret, Access Token, and Token Secret.
For RSA signature methods, provide a Consumer Key, Access Token, and Private Key.

Authentication Mode: OAuth 1

Generate Token file...: The Generate Token File... button takes you to the OAuth token generator.
Path to Token File: The path to the token file on the file system.
Token File Password: The Password for the token file.

OAuth 2

Use a saved token file along with its token password to establish a connection. To generate a new token file, click Generate Token File and follow the on-screen process. After saving the token file locally, enter the token password to connect. A dropdown menu allows you to customize where the access token appears in your request.

Authentication Mode: OAuth 2

Generate Token file...

The Generate Token File... button directs you to the OAuth token generator.

Path to Token File

The path to the token file on the file system.

Token File Password

The Password for the token file.

Put Access Token In

In the part of the web request where the token should go, the below options available:

HTTP Header
Query String
Custom

Note: The "Custom" access token location option is designed to work for advanced scenarios where the injection of the access token received from the OAuth authentication flow needs to be managed in a very particular way, such as inserting it in your HTTP request body, or using it in a different HTTP header or query string parameter (other than the standard OAuth Authorization HTTP header or query string parameter). Note that when using this option, where the access token is actually placed will depend on your implementation at the component level by using the @Connection[AccessToken] variable; otherwise, the token will be ignored. Supported components include Web Service/XML/JSON components.

OAuth Client Credentials

Use your ClientId, ClientSecret, Scope, and TokenUrl to establish an OAuth connection. A dropdown menu lets you customize the placement of the access token in the request.

Authentication Mode: OAuth Client Credentials

Client ID: The Client ID OAuth parameter.
Client Secret: The Client Secret OAuth parameter.

Scope: The Scopes may be set optionally for the level of access an application will have for a resource.
Request Tokens URL: The base URL to request tokens from.

Basic Authentication

The Basic Authentication can be enabled to send client credentials over authorization header rather than request body.

Put Access Token In

In the part of the web request where the token should go, the below options available:

HTTP Header
Query String
Custom

Static Token

Use your Token Name and Token Value to establish a connection. You can also use the dropdown to customize where the access token appears in the request.

Authentication Mode: Static Token

Static Token authentication uses a fixed predefined token or API Key that is expected to remain the same for continuous authentications.

Put Access Token In

In the part of the web request where the token should go, there are three options available:

HTTP Header
Query String
Custom

Token Name

The Token Name is the unique identifier to reference the authentication token.

Token Value

The Token Value is the secret key or string used for authentication.

Windows Integrated Authentication

No credential input is required. This method automatically uses the credentials of the currently signed-in user.

WSSE

Use your Username and Password to establish a connection using WSSE.

Username: The Username to use when accessing the web service.
Password: The Password to use when accessing the web service.

Test Connection: After all the connection information has been provided, click the "Test Connection" button to test if the user credentials entered can successfully connect to the selected service.

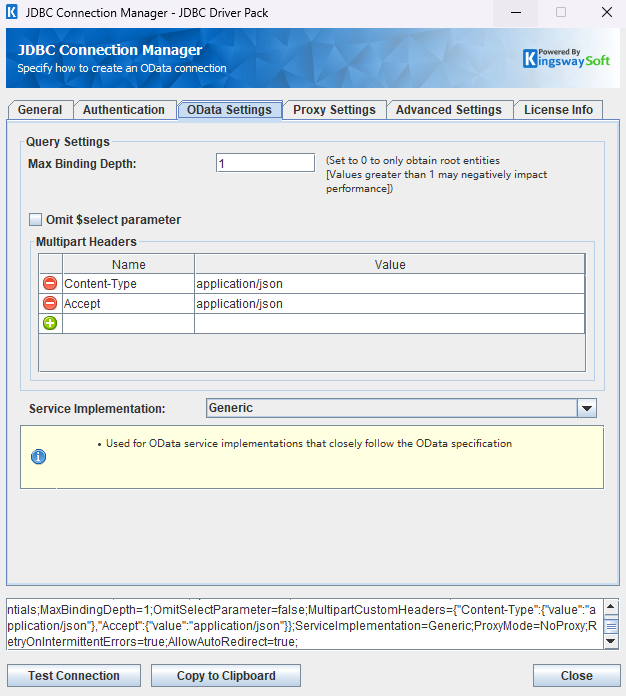

OData Settings Page

OData Settings

The ODataSettings page on the OData Connection Manager allows you to specify some specific and optional settings for the connection.

connectionmanage

Query Settings

Max Binding Depth: The Max Binding Depth option allows you to specify how deep you would like to go to discover additional bindings.
Omit $select parameter: When the Omit $select parameter setting is enabled, the $select parameter will not be sent in requests, causing all available attributes to be returned
Multipart Headers: In this section you can specify headers to be used when performing batch update or delete queries. Headers specified in this section will be included for each item in the batch request.

Service Implementation

Service Implementation

The Service Implementation can be picked out of the five options:

CDS/Dynamics 365 Customer Engagement
Generic
Generic - 'Next Link' Paging
Microsoft Graph
SharePoint

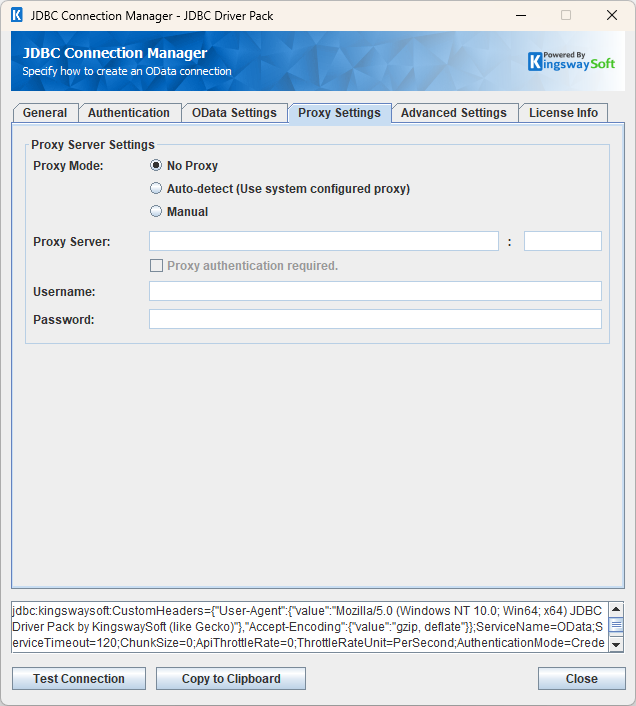

Proxy Settings Page

The Proxy Settings page on the Generic OData Driver Connection Manager allows you to specify some advanced and optional settings for the connection.

Proxy Server Settings

connectionmanage

Proxy Mode

The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

No Proxy
Auto-detect (Using system-configured proxy)
Manual

Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

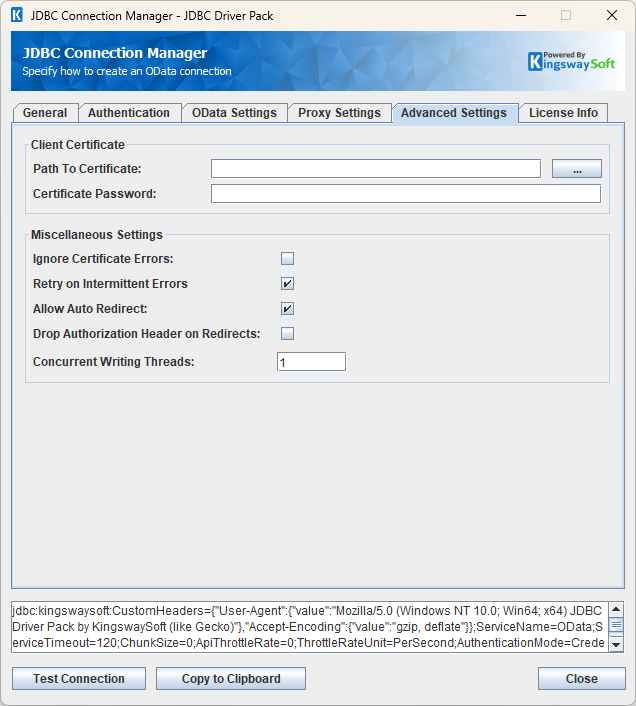

Advanced Settings Page

The Advanced Settings page allows you to specify advanced settings for the connection.

Advanced Settings

connectionmanage

Client Certificate

Path to Certificate: Provide the path to the certificate file to use for authentication. Click the ellipses button to browse their file system for the certificate.
Certificate Password: Provide the password to the certificate file.

Miscellaneous Settings

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to the target server.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.

Note: When this option is enabled, it applies to all HTTP-based SSL connections in the same job process.

Concurrent Writing Threads

This option can be used to set the number of threads to be used during write operations. This can improve performance during large-volume write operations.

Retry on Intermittent Errors

The retry on intermittent errors determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Allow Auto Redirect

The allow auto redirect option determines if requests will be automatically redirected when receiving a server-side redirect.

Drop Authorization Header on Redirects

Allows you to specify whether to drop the authorization header on any redirects.

Using the JDBC Driver

This section provides detailed examples of how to use JDBC classes (like Connection, Statement, and ResultSet) to interact with OData data. You will find examples for both regular and prepared statements to handle complex or frequently executed queries.

Executing Statements

After you have connected from your code, you can execute SQL statements using the Statement class. For connection details, see Connecting with DriverManager or Connecting with DataSource. For parameterized statements, see Executing Prepared Statements.

SELECT

Use the executeQuery (or generic execute) method of the Statement class to run SQL statements that returns data. After executing the query, retrieve the results by calling the getResultSet method.

String sql = "SELECT * FROM People WHERE UserName = 'russellwhyte'";
try {
    ResultSet resultSet = statement.executeQuery(sql);
    LOGGER.info(resultSet.toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

INSERT

Use the Statement class's executeUpdate (or generic execute) method to perform an INSERT operation. After execution, retrieve the results from the getResultSet method to view the inserted record's ID, any errors, and details of the affected data.

String sql = "INSERT INTO People (UserName, FirstName, LastName, Gender, Emails) "
           + "VALUES ('Name', 'First', 'Last', 'Male', '[email protected]')";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{"UserName":"Name","FirstName":"First","LastName":"Last","Gender":"Male","Emails":["[email protected]"]},false

UPDATE

Use the executeUpdate (or generic execute) method of the Statement class to perform an UPDATE operation. After the update, retrieve the results with the getResultSet method to view the updated record's ID, any errors encountered, and details of the changes made.

String sql = "UPDATE People "
           + "SET FirstName = 'UpdateFirst', LastName = 'UpdateLast', Emails = '[email protected]' "
           + "WHERE UserName = 'Name'";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{"FirstName":"UpdateFirst","LastName":"UpdateLast","Emails":["[email protected]"]},false

DELETE

Use the executeUpdate (or generic execute) method of the Statement class to run a DELETE operation. Then, use the getResultSet method to check the deleted record's ID, any errors, and information on what was removed.

String sql = "DELETE FROM People WHERE UserName = 'Name'";
try {
    statement.executeUpdate(sql);
    LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.severe(e.toString());
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{},false

Executing Prepared Statements

PreparedStatements can boost performance when running the same SQL statement multiple times with different parameters. Unlike a regular Statement, a PreparedStatement is created with a SQL statement that you can execute repeatedly with dynamic values. This special type of statement is derived from the more general Statement class.

Below are the steps outlining how to execute a prepared statement:

Creating and Executing a Prepared Statement

Create a PreparedStatement

Use the prepareStatement method of the Connection class to instantiate a PreparedStatement.

For connection details, see Connecting with DriverManager or Connecting with DataSource.

Set Parameters

Declare parameters by calling the corresponding setter method of the PreparedStatement.
NOTE: The parameter indices start at 1.

Execute the PreparedStatement

Use the generic execute or executeUpdate method of the PreparedStatement.

Retrieve Results

Call the getResultSet method of the PreparedStatement to obtain the query results, which are returned as a ResultSet.

Iterate Over the Result Set

Use the next method of the ResultSet to iterate through the results. To obtain column information, use the ResultSetMetaData class. Instantiate a ResultSetMetaData object by calling the getMetaData method of the ResultSet.

SELECT

Use the executeQuery (or generic execute) method of the PreparedStatement class to run SQL statements that returns data. After executing the query, retrieve the results by calling the getResultSet method.

String sql = "SELECT * FROM People WHERE UserName = ?";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "russellwhyte");
    ps.execute(sql);
    while (ps.getResultSet().next()) {
        for (int i = 1; i <= ps.getResultSet().getMetaData().getColumnCount(); i++) {
            LOGGER.info(ps.getResultSet().getMetaData().getColumnLabel(i) + "="
            + ps.getResultSet().getString(i));
        }
    }
} catch (SQLException e) {
    LOGGER.error(e);
}

INSERT

Use the PreparedStatement class's executeUpdate (or generic execute) method to perform an INSERT operation. After execution, retrieve the results from the getResultSet method to view the inserted record's ID, any errors, and details of the affected data.

String sql = "INSERT INTO People (UserName, FirstName, LastName, Gender, Emails) VALUES (?, ?, ?, ?, ?)";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "Name");
    ps.setString(2, "First");
    ps.setString(3, "Last");
    ps.setString(4, "Male");
    ps.setString(5, "[email protected]");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{"UserName":"Name","FirstName":"First","LastName":"Last","Gender":"Male","Emails":["[email protected]"]},false

UPDATE

Use the executeUpdate (or generic execute) method of the PreparedStatement class to perform an UPDATE operation. After the update, retrieve the results with the getResultSet method to view the updated record's ID, any errors encountered, and details of the changes made.

String sql = "UPDATE People SET FirstName = ?, LastName = ?, Emails = ? WHERE UserName = ?";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "UpdateFirst");
    ps.setString(2, "UpdateLast");
    ps.setString(3, "[email protected]");
    ps.setString(4, "Name");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{"FirstName":"UpdateFirst","LastName":"UpdateLast","Emails":["[email protected]"]},false

DELETE

Use the executeUpdate (or generic execute) method of the PreparedStatement class to run a DELETE operation. Then, use the getResultSet method to check the deleted record's ID, any errors, and information on what was removed.

String sql = "DELETE FROM People WHERE UserName = ?";
try {
    PreparedStatement ps = connection.prepareStatement(sql);
    ps.setString(1, "Name");
    ps.executeUpdate();
    LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
    LOGGER.error(e);
}

UserName,errorcode,errormessage,processdata,haserrors
Name,null,null,{},false

Metadata Discovery

This section provides examples on how to retrieve table and column metadata using the getTables, getColumns, and getPrimaryKeys methods from the DatabaseMetaData interface. These are essential for discovering database structures.

Tables

The getTables method from the DatabaseMetaData interface can be used to retrieve a list of tables.

This method only retrieves tables that are not write-only.

To get a list of tables that includes write-only tables, query the table system.tables.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getTables(null, null, null, null);
    LOGGER.info("\r\n" + rs.toString());
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,TABLE_TYPE,REMARKS
null,null,Airlines,Table,null
null,null,Airports,Table,null
null,null,Me,Table,null
null,null,Me/Friends,Table,null
null,null,Me/Photo,Table,null
null,null,Me/Trips,Table,null
null,null,People,Table,null
null,null,People/Friends,Table,null
null,null,People/Photo,Table,null
null,null,People/Trips,Table,null
......

The getTables method returns the following metadata columns:

Column Name	Data Type	Description
TABLE_CAT	String	The catalog that contains the table.
TABLE_SCHEM	String	The schema of the table.
TABLE_NAME	String	The name of the table.
TABLE_TYPE	String	The type of the table (e.g., TABLE or VIEW).
REMARKS	String	An optional description of the table.

Columns

Use the getColumns method of the DatabaseMetaData interface to retrieve detailed information about database columns. To narrow the results to a specific table, specify the table name using the parameter table_name.

This method returns columns only for tables that are not write-only.

To get columns for write-only tables, query the table system.columns.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getColumns(null, null, "People", null);
    LOGGER.info(rs.toString());
} catch (SQLException e) {
    e.printStackTrace();
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,COLUMN_NAME,DATA_TYPE,TYPE_NAME,COLUMN_SIZE,BUFFER_LENGTH,DECIMAL_DIGITS,NUM_PREC_RADIX,NULLABLE,REMARKS,COLUMN_DEF,SQL_DATA_TYPE,SQL_DATETIME_SUB,CHAR_OCTET_LENGTH,ORDINAL_POSITION,IS_NULLABLE,IS_AUTOINCREMENT,IS_GENERATEDCOLUMN,DTS_TYPE
null,null,People,AddressInfo,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,Concurrency,-5,BIGINT,null,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,People,Emails,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,FirstName,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,Friends,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,Gender,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,LastName,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,Photo,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,Trips,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,People,UserName,12,VARCHAR,null,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR

The getColumns method returns the following columns:

Column Name	Data Type	Description
TABLE_CAT	String	The database name.
TABLE_SCHEM	String	The table schema.
TABLE_NAME	String	The table name.
COLUMN_NAME	String	The column name.
DATA_TYPE	Integer	The data type represented by a constant value from java.sql.Types.
TYPE_NAME	String	The data type name used by the driver.
COLUMN_SIZE	Integer	The length in characters of the column or the numeric precision.
BUFFER_LENGTH	Integer	The buffer length.
DECIMAL_DIGITS	Integer	The column scale or number of digits to the right of the decimal point.
NUM_PREC_RADIX	Integer	The radix, or base.
NULLABLE	Integer	Whether the column can contain null as defined by the following JDBC DatabaseMetaData constants: columnNoNulls (0) or columnNullable (1).
REMARKS	String	The comment or note associated with the object.
COLUMN_DEF	String	The default value for the column.
SQL_DATA_TYPE	Integer	Reserved by the specification.
SQL_DATETIME_SUB	Integer	Reserved by the specification.
CHAR_OCTET_LENGTH	Integer	The maximum length of binary and character-based columns.
ORDINAL_POSITION	Integer	The position of the column in the table, starting at 1.
IS_NULLABLE	String	Whether a null value is allowed: YES or NO.
IS_AUTOINCREMENT	String	Whether the column value is assigned by OData in fixed increments.
IS_GENERATEDCOLUMN	String	Whether the column is generated: YES or NO.
DTS_TYPE	String	Object DTS attribute type.

Primary Keys

The getPrimaryKeys method in the DatabaseMetaData interface is used to retrieve metadata about primary keys for a given table in OData.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet resultSet = connection.getMetaData().getPrimaryKeys(null, null, "People");
    LOGGER.info("\r\n" + resultSet.toString());
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_NAME,PRIMARY_COLUMN_NAME
People,UserName

The getPrimaryKeys method returns the following columns:

Column Name	Data Type	Description
TABLE_NAME	String	The name of the table that contains the primary key.
PRIMARY_COLUMN_NAME	String	The name of the column that serves as the primary key for the table.

Connection Settings

Connection Setting	Type	Default Value	Description
AccessKey	String	""	A unique identifier used to authenticate API requests in cloud services like AWS.
AccessSecret	String	""	A secret key associated with the AccessKey for secure sign-in requests to cloud services.
AccessToken	String	""	The AccessToken is used to authenticate access to OData.
AccessTokenSecret	String	""	A secret key paired with the AccessToken to sign API requests and confirm integrity.
AllowAutoRedirect	Boolean	true	Whether the HTTP client should automatically follow redirect when the server responds with a redirect status.
ApiKey	String	""	The ApiKey is the unique identifier used for authenticating API requests to access OData resources.
ApiThrottleRate	Integer	0	The maximum number of API requests a client can make to the server within a specific time period, defined in the ThrottleRateUnit setting. A value of 0 will disable throttling.
AuthenticationMode	String	"AuthorizationCode"	AuthenticationMode specifies the method used to authenticate when connecting to OData OData API.
AWSRegion	String	""	The geographical region where the AWS resources are hosted.
AzureAuthorizationUrl	String	"https://login.microsoftonline.com"	The endpoint where a user is redirected to authenticate and grant permission to access protected resources.
AzureCertificatePassword	String	""	The password associated with the certificate file for decryption.
AzureOAuthType	String	"Certificate"	The method used for authenticating a client to an authorization server.
AzureResource	String	""	The Application ID URI of the protected service for which an access token is requested.
AzurePathToCertificate	String	""	The file path to a certificate used for encrypted communication during connection.
BaseUrl	String	""	The root URL or endpoint of the API or service being connected.
BasicAuth	Boolean	false	Whether the credentials are encoded in the HTTP header for connection verification.
BearerToken	String	""	A token provided to grant API requests access to resources.
BulkPollingInterval	Integer	5	How often the component checks the job status until the job status is COMPLETE.
CacheExpirationTime	Integer	30	Defines the expiration time for cache. A value of 0 disables caching.
CertificatePassword	String	""	The password associated with the certificate file for decryption.
ChunkSize	Integer	0	The size of data chunks that are sent or received in an API request or response. A value of 0 will disabling chunking.
ClientId	String	""	A unique identifier for the application or client making requests to an API.
ClientSecret	String	""	A secret key used with the ClientId to authenticate a client in OAuth
ConcurrentWritingThreads	Integer	1	The number of threads for executing operations in parallel. A value of 0 will disable multi-threading.
ConnectionTimeout	Integer	30	ConnectionTimeout is the maximum amount of time the program will wait to set up a connection to the OData API.
ConsumerKey	String	""	A public identifier for the client making the API request.
ConsumerSecret	String	""	A private key associated with the ConsumerKey used to securely authenticate the client.
CurlCommandText	String	""	The CURL command in text form used to test the connection to an API. It includes details such as HTTP method, headers, and any payload.
CurlFilePath	String	""	The file path to a CURL file containing predefined settings for sending requests.
CurlSource	String	""	The source of the CURL command and whether the CurlFilePath or CurlCommandText is being used.
CustomHeaders	String	""	A JsonNode String of header key value pairs used in requests.
Domain	String	""	The domain name or host being connected to.
DropAuthHeader	Boolean	false	Whether or remove or ignore the authentication header in the request.
GoogleCertificatePassword	String	""	The password associated with the certificate file for decryption.
GoogleJsonKeyFile	String	""	The GoogleJsonKeyFile option specifies the file path for the JSON key file that is used when connecting using a Google Service Account.
GooglePathToCertificate	String	""	The file path to a certificate used for encrypted communication during connection.
IgnoreCertificateErrors	Boolean	false	Specifies whether to verify the certificate when connecting to OData. If certificate verification is not required, you can set this value to 'true'.
ContinueOnErrors	Boolean	false	Determines if the program continues executing SQL statements after encountering an error.
JwtClaims	String	""	The claims encoded within a JSON Web Token (JWT).
JwtKeyFile	String	""	A file containing a key used to sign or verify the JWT.
JwtSecret	String	""	A secret key used in signing and verification of JWTs.
JwtSource	String	""	The source from which the JWT is obtained.
LogFileSize	String	"10485760"	A string specifying the maximum size in bytes for a log file.
LogLevel	String	"INFO"	The logging level for the JDBC driver.
LogPath	String	"./jdbcLogs"	The directory where log files are stored.
MaxBindingDepth	Integer	1	MaxBindingDepth refers to the maximum depth allowed for a OData query to avoid performance issues.
MultipartCustomHeaders	String	""	A JsonNode containing key/value pairs for custom headers. These headers are used when performing batch actions that send multipart requests. Using this property, you can set the custom headers that will be sent for each record in a batch request.
OemKey	String	""	The OEM license key.
OmitSelectParameter	Boolean	false	When enabled, the $select parameter will not be sent in requests, causing all available attributes to be returned. When disabled, the $select parameter will be sent and only contain fields that were specified in the query.
Password	String	""	The password used to authenticate the user.
PathToCertificate	String	""	The file path to a certificate used for encrypted communication during connection.
PathToPrivateKey	String	""	The private key file path for authentication when using an RSA based Signature Method.
PathToTokenFile	String	""	The file path where a token is stored.
ProxyMode	String	NoProxy	This setting configures the proxy. Allowed values are "NoProxy", "AutoDetect" and "Manual".
ProxyPassword	String	""	The password to be used to authenticate to the proxy.
ProxyServer	String	""	The host of the proxy server.
ProxyServerPort	Integer	0	The port of the proxy server.
ProxyUsername	String	""	The username to be used to authenticate to the proxy.
ReadBatchSize	Integer	100	ReadBatchSize is used to set how many records can be read from OData in a single call.
Realm	String	""	A domain within which authentication and authorization processes occur.
ResultPath	String	""	The path where the execution result files are saved.
RetryOnIntermittentErrors	Boolean	true	The RetryOnIntermittentErrors parameter indicates whether to retry the connection when it might occasionally fail due to temporary issues.
SaveResult	Boolean	false	The SaveResult parameter indicates whether to save the execution results to a file.
Scope	String	""	The access level or permissions granted for a token.
ServiceAccount	String	""	A account used to authenticate and authorize a service to interact with APIs.
ServiceImplementation	String	"Generic"	The Service Implementation option specifies which OData protocol version and behavior pattern the driver should follow when communicating with the target service.
ServiceName	String	""	The ServiceName refers to the name of the service API selected by the user.
ServiceNameAWS	String	""	The name of the name of the AWS service selected by the user.
ServiceTimeout	Integer	120	The ServiceTimeout is the timeout to receive the full response from OData API.
SessionToken	String	""	A temporary security token used with the AccessKey and AccessSecret for temporary credentials.
SignatureMethod	String	""	The method used to sign API requests for authentication.
SignatureVersion	Integer	4	The version of the signature algorithm used to authenticate requests.
StaticTokenName	String	""	The name of the static token.
StaticTokenValue	String	""	The value of the static token.
Suppress404NotFoundError	Boolean	true	When set to true, if a query results in an HTTP 404 error, a result set will still be created. When set to false, an error is logged instead and no result set is created.
TenantId	String	""	An identifier for a specific tenant, used to distinguish users or organizations.
ThrottleRateUnit	String	"PerSecond"	The unit of time for limiting API requests to avoid being throttled. Valid values include, "PerSecond", "PerMinute" and "PerHour".
TokenExpiry	Integer	0	The expiration time or validity period of a token, after which the token becomes invalid and needs to be refreshed or reissued.
TokenExpression	String	""	A specified expression or rule used to extract or manipulate the token from the CURL response.
TokenLocation	String	""	The TokenLocation option allows you to specify where the token should be placed in a request. Valid values are "Http Header", "Query String" and "Custom". Custom allows you to place the token in a user specified location in the Base URL or Header by using `@Connection[AccessToken]` to represent the token. Example of use in Base URL: to set the token to a user defined parameter on the base URL: `https://example.com?customTokenLocation=@Connection[AccessToken]`
TokenPassword	String	""	A password associated with the token used for encryption and decryption.
TokenStrategy	String	""	The approach used for handling the CURL request response.
TokenUrl	String	""	The URL endpoint used to request or obtain a token.
UserEmail	String	""	The email specifies the user account used for OAuth JWT connection to OData.
UserName	String	""	The user account used to connect to the server.
WriteBatchSize	Integer	200	WriteBatchSize is used to set how many records can be written to OData in a single call.

Generic OData JDBC Driver

Documentation for Generic OData drivers found within JDBC Driver Pack

Generic OData Driver

Building the JDBC URL

General Page

Authentication Methods for the Generic OData Driver

Authentication Mode: Azure OAuth

Authentication Mode: Basic

Authentication Mode: Bearer Token

OData Settings Page

Proxy Settings Page

Advanced Settings Page

Using the JDBC Driver

Executing Statements

SELECT

INSERT

UPDATE

DELETE

Executing Prepared Statements

SELECT

INSERT

UPDATE

DELETE

Metadata Discovery

Tables

Columns

Primary Keys

Connection Settings
