Help Manual - Teamwork Connection Manager

Documentation on SSIS Teamwork Connection Manager component

Setup a REST Teamwork Connection Manager

The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with Teamwork REST service to help facilitate data integration for Teamwork.

See Teamwork REST Source Component for how to retrieve data from Teamwork and Teamwork REST Destination Component for how to write to Teamwork.

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

General page

The General page allows you to specify connection properties and login credentials for Teamwork REST service:

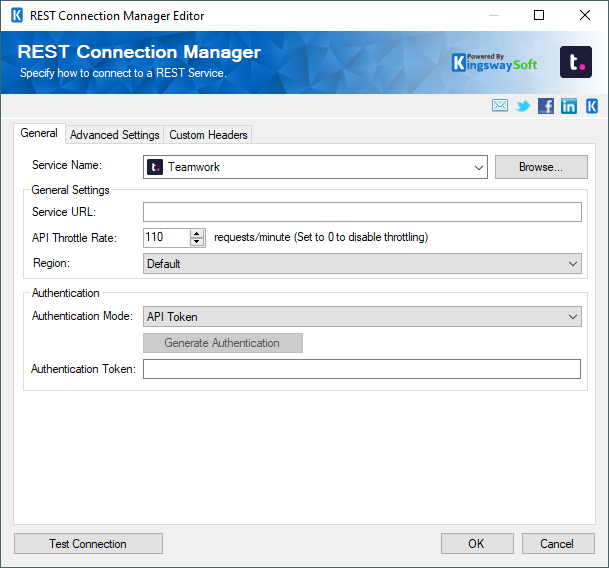

SSIS REST Teamwork Connection Manager

Service Name

The REST service that will be connected to.

Service URL

The full URL of the Teamwork instance that will be connected to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per second.

Region

This option allows you to specify the region which your Teamwork instance belongs to.

Authentication Mode

The Authentication Mode option allows you to specify the authentication mode when working with Teamwork service. Available options are:

  • API Token
  • OAuth
Generate Authentication (Only available with OAuth Authorization Mode)

This button opens a dialogue box in order to sign-in to your Teamwork instance to generate a new Authentication Token. In the dialogue box, the following two options exist:

  • Use Default Browser to Sign In: When this option is checked the Sign In and Authorize button will open your default web browser in order to complete the OAuth authentication. When this option is unchecked, the Sign In and Authorize button will complete the entire OAuth authentication process inside of the toolkit.
  • Sign In and Authorize: This button allows you to login to the service endpoint and authorize your app to generate a token.
Authentication Token

This options allows you to enter your own API token which is going to be used to connect to your Teamwork instance.

Show Button

Clicking on this button allows you to see or copy the token in the 'Authentication Token' field.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings page

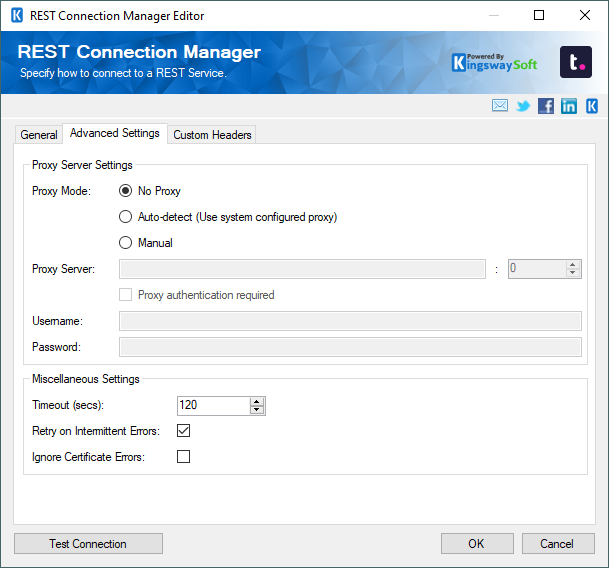

REST Connection Manager - Advanced

Proxy Mode

Proxy Mode option allows to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system configured proxy)
  • Manual
Proxy Server

Using Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Slack servers.

Warning: Enabling "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instance. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
