Setup a REST ActiveCampaign Connection Manager
The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with ActiveCampaign REST service to help facilitate ActiveCampaign data integration.
See ActiveCampaign REST Source Component for how to retrieve data from ActiveCampaign & ActiveCampaign REST Destination Component for how to write to ActiveCampaign.
To add a new connection, right-click the Connection Manager area in your Visual Studio project and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.
The REST Connection Manager contains 2 pages of configuration.
- General
- Advanced Settings

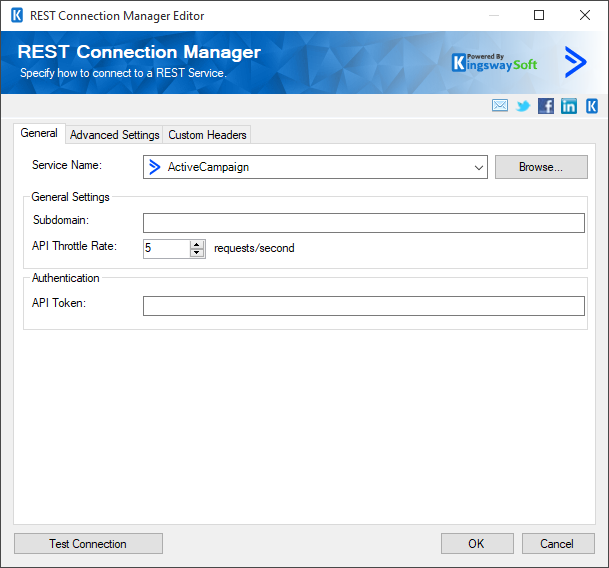

General
The General page allows you to specify connection properties and login credentials for ActiveCampaign REST service:
Service Name-
The REST service that will be connected to.
Subdomain-
The Subdomain lets you specify the Subdomain for the Active Campaign instance you are connecting to.
API Throttle Rate-
The API Throttling Rate will limit the number of requests that can be sent per second.
API Token-
This options allows you to enter your own API token which is going to be used to connect to your Active Campaign instance.
Test Connection-
After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

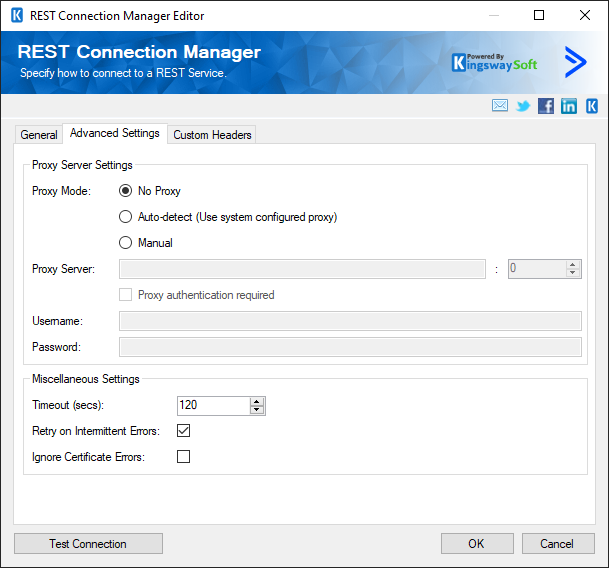

Advanced Settings page
Proxy Mode option allows to specify how you want to configure the proxy server setting. There are three options available.
- No Proxy
- Auto-detect (Using system configured proxy)
- Manual
Proxy Server
Using Proxy Server option allows you to specify the name of the proxy server for the connection.
Port
The Port option allows you to specify the port number of the proxy server for the connection.
Username (Proxy Server Authentication)
Username option (under Proxy Server Authentication) allows you to specify the proxy user account.
Password (Proxy Server Authentication)
Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.
Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.
Timeout
The number of seconds requests should wait before timing out.
Retry on Intermittent Errors
The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.
Ignore Certificate Errors
This option can be used to ignore those SSL certificate errors when connecting to the servers.
Warning: Enabling "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instance. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
