Setup a REST Smartsheet Connection Manager

The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with Smartsheet REST service to help facilitate Smartsheet data integration.

See Smartsheet REST Source Component  for how to retrieve data from Smartsheet & Smartsheet REST Destination Component for how to write to Smartsheet.

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

General page

The General page allows you to specify connection properties and login credentials for Smartsheet REST service:

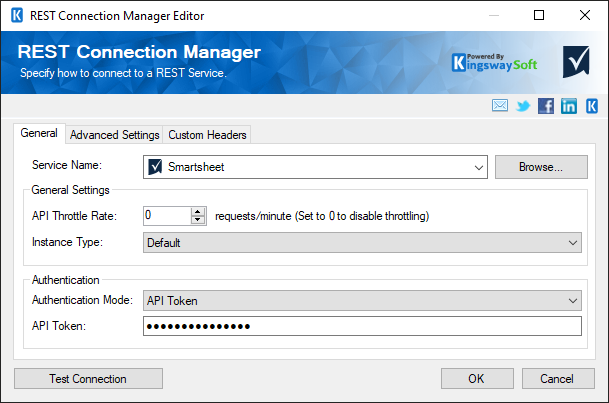

SSIS REST Smartsheet Connection Manager

Service Name

The REST service that will be connected to.

API Throttle Rate

The API Throttle Rate will limit the number of requests that can be sent per second.

Smartsheet Authentication
Scope

The Scope parameter indicates which parts of the Smartsheet user's account you'd like your app to be able to access.

Authentication Mode

The Authentication Mode that will be used to connect to Smartsheet.  Either API Token or OAuth.

Smartsheet Token Authentication
API Token

If you have an API Token that you would like to use, enter it in the API token field.

Smartsheet OAuth Authentication
Sign in using default web browser (Only available with OAuth Authorization Code authentication):

When this option is checked the Generate Token File button will open your default web browser in order to complete the OAuth authentication.

When this option is unchecked, the Generate Token File button will complete the entire OAuth authentication process inside of the toolkit.

Generate Token File

This button allows you to login to the service endpoint and authorize your app to generate a token.

Path To Token File

After completing the OAuth process a token file must be saved that contains an OAuth token and an OAuth refresh token.  These tokens are used to authenticate SmartSheet requests and to get new tokens if the current tokens expire.

Token File Password

The Token File Password that can be used by the Rest Connection Manager to access the contents of the token file.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings page

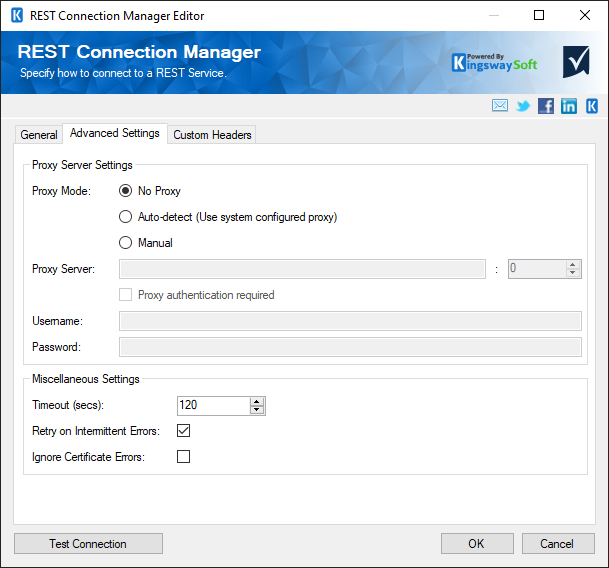

REST Connection Manager - Advanced

Proxy Mode

Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system configured proxy)
  • Manual
Proxy Server

Using Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Smartsheet servers.

Warning: Enabling "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instance. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
