Setup a REST Slack Connection Manager

The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with Slack REST service to help facilitate Slack data integration.

See Slack REST Source Component for how to retrieve data from Slack & Slack REST Destination Component for how to write to Slack.

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

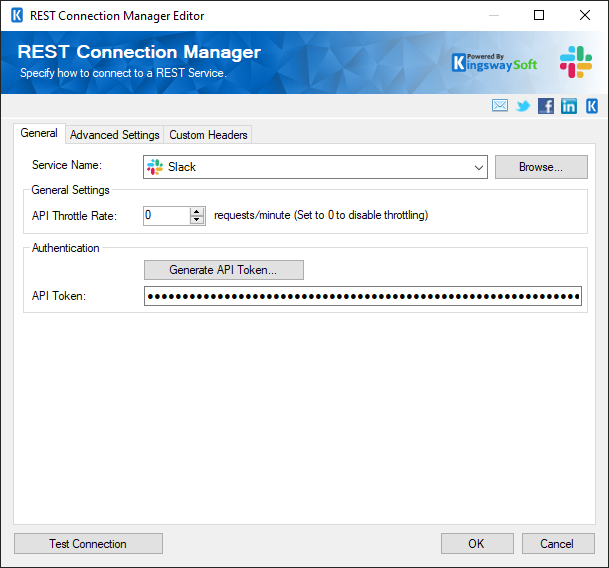

General page

The General page allows you to specify connection properties and login credentials for Slack REST service:

SSIS REST Slack Connection Manager

Service Name

The REST service that will be connected to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per second.

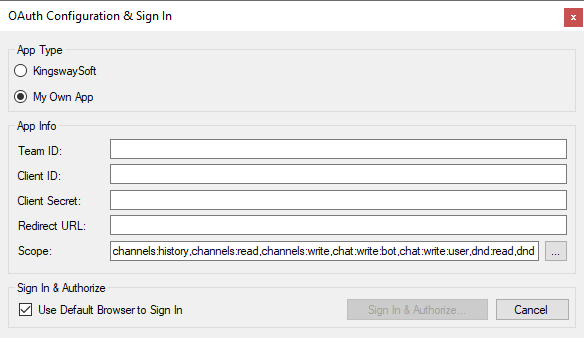

Slack Authentication

This option allows you to specify your application when working with Slack REST service App.

  • App Provided by KingswaySoft: use the Client Id and Secret that is provided by KingswaySoft for your convenience when setting up the connection, it should NEVER be used for production purpose.
  • My Own: specify your own application registration with Slack
    • Client Id
    • Client Secret
    • RedirectUrl

Warning: By default you are using the Slack authorization information (Client Id and Client Secret) provided by KingswaySoft, which is provided for your convenience when setting up the connection, and it should NEVER be used for production purpose. To obtain your own Slack API authorization credentials for product use, please follow the instructions at the link below to create your own application registration with Slack:


The Scopes parameter indicates which parts of the Slack user's account you'd like your app to be able to access.

Team ID

The  Slack team ID of a workspace to attempt to restrict to.

Sign in using default web browser (Only available with OAuth Authorization Code authentication):

When this option is checked the Generate Token File button will open your default web browser in order to complete the OAuth authentication.

When this option is unchecked, the Generate Token File button will complete the entire OAuth authentication process inside of the toolkit.

Generate Token File
This button allows you to login to the service endpoint and authorize your app to generate a token.
Access Token

If you have an Access Token that you would like to use, enter it in the access token field. If you do not have a Slack access token you can generate one by clicking the Generate Token button.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings page

REST Connection Manager - Advanced

Proxy Mode

Proxy Mode option allows to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system configured proxy)
  • Manual
Proxy Server

Using Proxy Server option allows you to specify the name of the proxy server for the connection.


The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.


The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Slack servers.

Warning: Enabling "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instance. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
