Help Manual - Open Accounting Connection Manager

Documentation on SSIS Open Accounting Connection Manager

Setting Up a Open Accounting Connection Manager

The REST Connection Manager is an SSIS connection manager that can be used to establish connections and facilitate data integration with REST based APIs and services such as Open Accounting, among many more.

Integration for Open Accounting is enabled by the following two components:

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

General Page

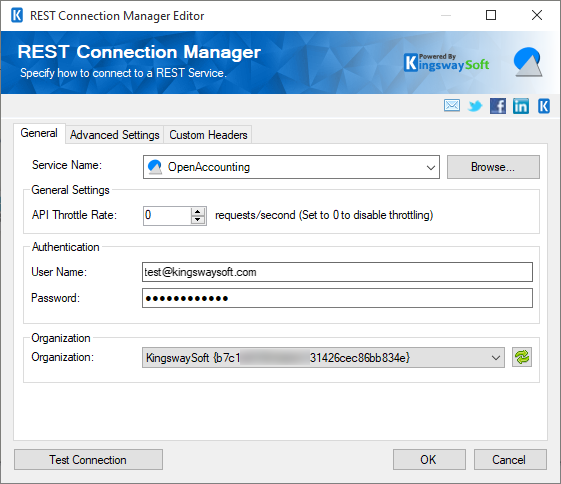

The General page allows you to specify connection properties and login credentials for Open Accounting REST service:

OPenAccounting Connection Manager.png

Service Name

The REST service that will be connected to.

    API Throttle Rate

    The API Throttling Rate will limit the number of requests that can be sent per minute.

    Username

    The Username to use when accessing Open Accounting service.

    Password

    The Password to use when accessing Open Accounting service.

    Organization

    The Organization to use when accessing Open Accounting service. Click on the refresh button and pick the Organization from the drop down.

    Test Connection

    After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

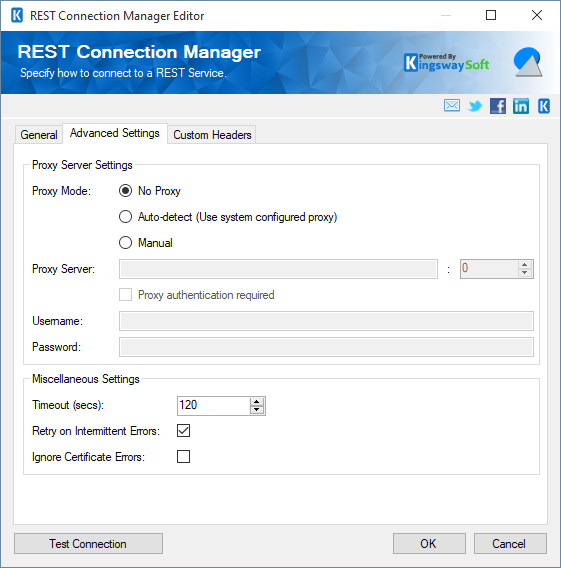

    Advanced Settings Page

    OpenAccounting Connection Manager - Advanced Settings.png

    Proxy Mode

    The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

    • No Proxy
    • Auto-detect (Using system-configured proxy)
    • Manual
    Proxy Server

    Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

    Port

    The Port option allows you to specify the port number of the proxy server for the connection.

    Username (Proxy Server Authentication)

    The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

    Password (Proxy Server Authentication)

    The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

    Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

    Timeout

    The number of seconds a request should wait before timing out.

    Retry on Intermittent Errors

    The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked, requests will be retried up to 3 times.

    Ignore Certificate Errors

    This option can be used to ignore those SSL certificate errors when connecting to Open Accounting servers.

    Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
