Using the CosmosDB Destination Component

The CosmosDB Destination Component is an SSIS data flow pipeline component that can be used to write data from an upstream SSIS Component to a CosmosDB instance.

The component includes the following five pages to configure how you want to write data.

  • General.
  • Document Designer.
  • Columns.
  • Advanced.
  • Error Handling.

General

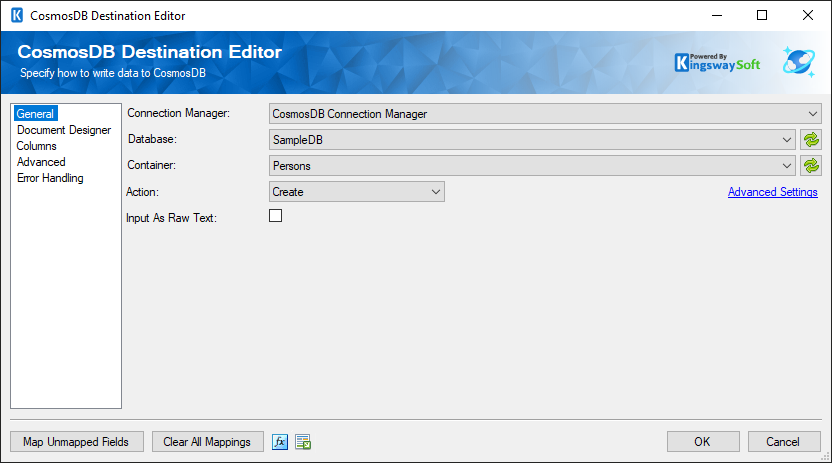

The General page of the CosmosDB Destination Component allows you to specify the general settings of the component.

CosmosDB Destination Editor

Connection Manager

The CosmosDB Destination Component requires a connection in order to connect to a CosmosDB instance. The Connection Manager drop-down will show a list of all CosmosDB connection managers that are available to your current SSIS package.

Database

This option lists all the available Databases in the CosmosDB instance. After selecting the Database you wish to read from, the Collection drop down will be populated with the available Collections in the selected Database.

Collection

This option lists all the Collections available in the selected Database.

Destination Type

This option specifies the type of object you are trying to write to in your CosmosDB instance.There are two types of Destination Types:

  • Document.
  • Attachment.

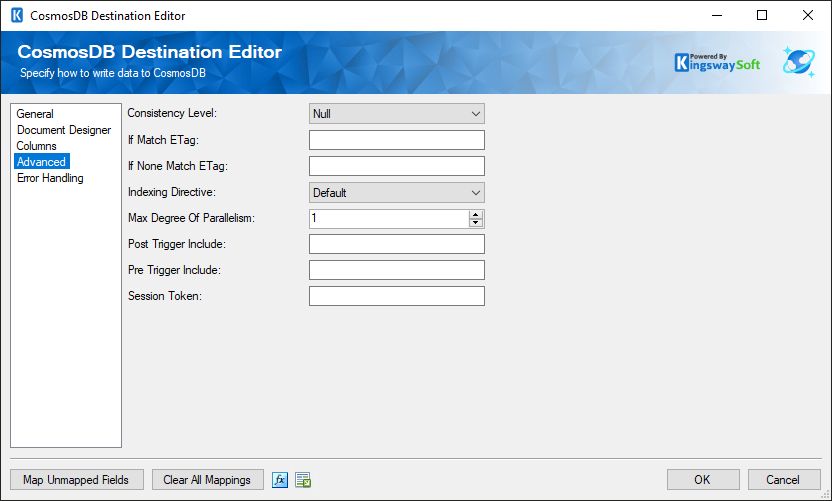

Advanced Settings

This option navigates to the Advanced Page of the CosmosDB Destination Component.

Document Action (Only available for Document Destination Type):

There are four different actions in order to write documents to a CosmosDB instance. Available actions are:

  • Create: Creates a new document in a CosmosDB instance.
  • Upsert: Updates any existing document(s) in a CosmosDB instance if a match can be found, otherwise create a new record with the information from the upstream pipeline components.
  • Replace: Replaces an existing document in a CosmosDB instance with the information from the upstream pipeline components.
  • Delete: Deletes an existing document in a CosmosDB instance.
Attachment Action (Only available for Attachment Destination Type):

There are two different actions in order to write attachments to a CosmosDB instance. Available actions are:

  • Upload: Creates a new Attachment in a CosmosDB instance.
  • Delete: Deletes an existing Attachment from a CosmosDB instance.
Overwrite Existing (Only available for Attachment Destination Type):

This option allows you to specify if you want to overwrite existing attachments when uploading a new attachment to a CosmosDB instance.

Expression fx Icon

Click the blue fx icon to launch SSIS Expression Editor to enable dynamic update of the property at run time.

Generate Documentation Icon

Click the Generate Documentation icon to generate a Word document which describes the component's metadata including relevant mapping, and so on.

Document Designer

The Document Designer page allows you to build the design of the document you are trying to write to, or import the design from an existing document.This page is only available when selecting Document Destination Type.

CosmosDB Destination Editor

The Document Designer includes the following four tabs:

  • Details View.
  • Diagram View.
  • Preview.
  • Additional Settings.

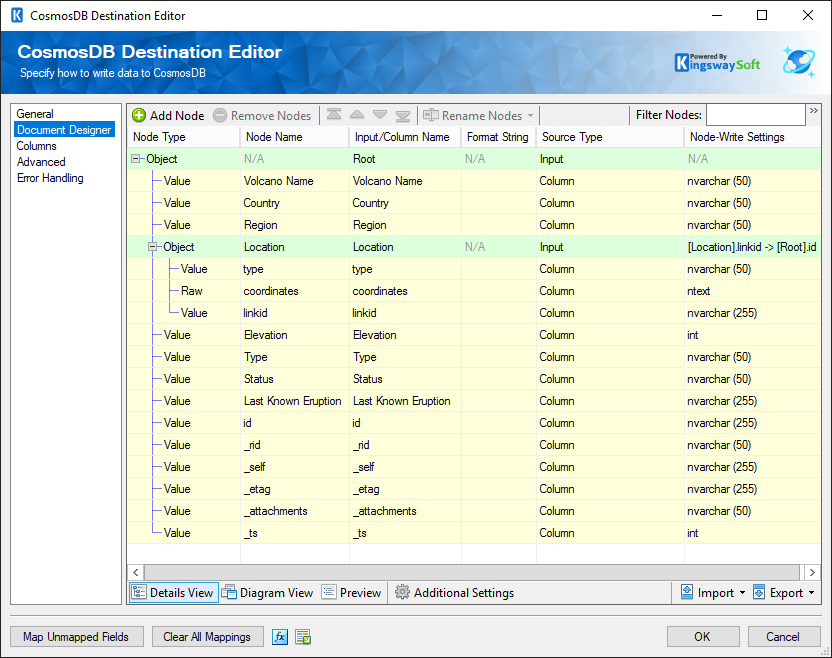

In the Details View tab, the top part of the page is used to manually configure the nodes in the design:

  • Add Node: This button will add a new node to your Document design.
  • Remove Nodes: This button will remove a node from your Document design.
  • Direction buttons: These buttons can be used to rearrange the position of the nodes.
  • Rename Nodes: This option allows you to specify how the node name should be represented.
    • Use Qualified Names: When this option is selected, the output/column name will be set to the full qualified node name based on the node location in the document.
    • Use Short Names: When this option is selected, the output/column name will be set to the given Node Name directly.
  • Filter Columns: This option allows you to show or hide certain Columns in the grid.
    • Show Basic Columns: When this option is selected, only basic columns will be shown in the grid.
    • Show All Columns: When this option is selected, all available columns will be shown in the grid.
  • Filter Nodes: This option allows you to filter the list of nodes shown in the grid by typing a keyword in the textbox.

The Details View grid consists of:

  • Node Type: This options allows specify the type of the Node in your document design, There are four options available:
    • Array.
    • Object
    • Value.
    • Raw: This type can be used when trying to write JSON data under a node exactly as it is in the document.
  • Node Name : The Name of the Node in the document.
  • Input/Column Name: The name which will be used for the node when writing to the document.
  • Is Repeated: This option allows you to specify if a node is repeated within a document. (Available when Show All Columns is selected)
  • Format String: This option allows you to specify the target output format for a string when converting datetime/number values to a string. It follows the same .Net formatting function found at this link. (Available when Show All Columns is selected)
  • Source type: The type of the input for a node such as a dedicated Input, Variable or a Column depending on the Node Type.
  • Node-Write Settings: This option allows you to specify the settings of each node such as the datatype or the Variable Name based on the selected Source Type.

In the Diagram View tab, you would be able to view the document design as a diagram where you can link different inputs with each other in order to create the hierarchy of your document and establish relationships between the different inputs:

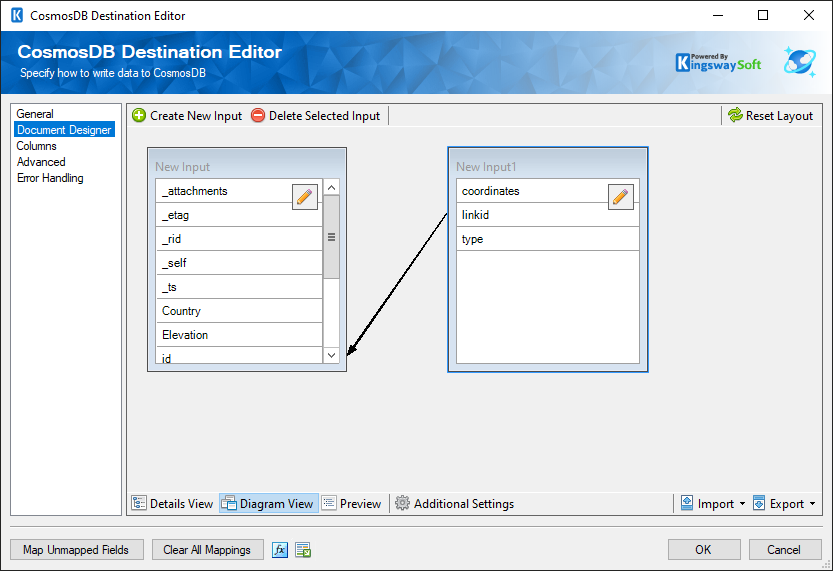

CosmosDB Destination Editor

Create New Input

This option allows you to create a new Input and link it to an existing input if required based on the intended document design.

Delete Selected Input

This option allows you to remove existing Inputs from the digram

Reset Layout

This option allows you to rest the layout of the digram which would reorganize the location of each input.

In the Preview tab, the component will show a sample of the document which will be created with test values.

In the Additional Settings tab, you would find the following options:

  • Null Mode: This option allows you to specify the handling of Null values.
  • 'Is Repeated' Text Qualifier:  This option allows you to specify the  Text Qualifier used in a document when the  Is Repeated property is set to True for one or more node. There are four options available:
    • Double-quote(“).
    • Single-quote (‘).
    • Tick (`).
    • None.
  • 'Is Repeated' Text Delimiter: This option allows you to specify the  Text Delimiter used in a document when the  Is Repeated property is set to True for one or more node. There are seven options available:
    • Newline (\n).
    • Carriage Return (\r).
    • Semicolon (;).
    • Colon (:).
    • Comma (,).
    • Tab (\t).
    • Vertical Bar (|).
Import

This option allows you to import the design of your document from one of the following five sources:

  • Designer Settings: Import the design from an existing .designer.settings file.
  • Input (Reset Design): Create the design based on the input columns for the upstream components.
  • Document (CosmosDB): Import the design based on the retrieved document from the connection manager.
  • JSON (Local File): Import the design based on a JSON file on your local file system.
  • JSON Schema (Local File): Import the design based on a JSON Schema file on your local file system.
CosmosDB Document Importer

When selecting the Document (CosmosDB) Import option, the CosmosDB Document Importer window will open which allows you to specify a query which will set the design of the Source Component based on the retrieved document.

CosmosDB Source Editor
  • Documents to scan: This option allows you to specify the maximum number of retrieved documents which will be used to set the design of the Destination Component. Setting this option to 0 will read all the retrieved documents.
Export

Designer Settings: This option allows you to export the current document design to a .designer.settings file which can be used later to import the same design in a different component.

Columns

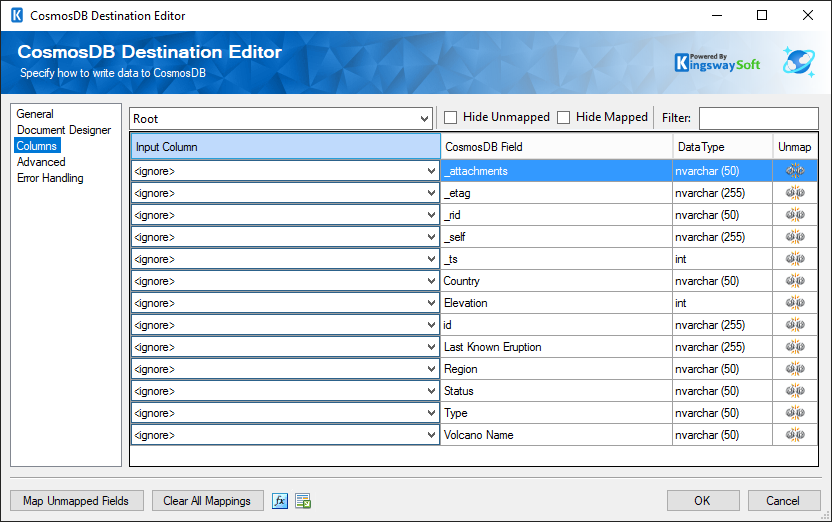

The Columns Page of the CosmosDB Destination Component allows you to map the columns from upstream components to the defined nodes for the designed document.

CosmosDB Destination - Columns Page

  • Input Column: Select an Input Column from an upstream component.
  • CosmosDB Field: This is the field you are writing data to
  • Data Type: This column indicates the type of value for the current field.
  • Unmap: This column can be used to unmap the field from the upstream input column, or otherwise it can be used to map the field to an upstream input column by matching its name if the field is not currently mapped.

Error Handling Page

The Error Handling page allows you to specify how errors should be handled when they happen.

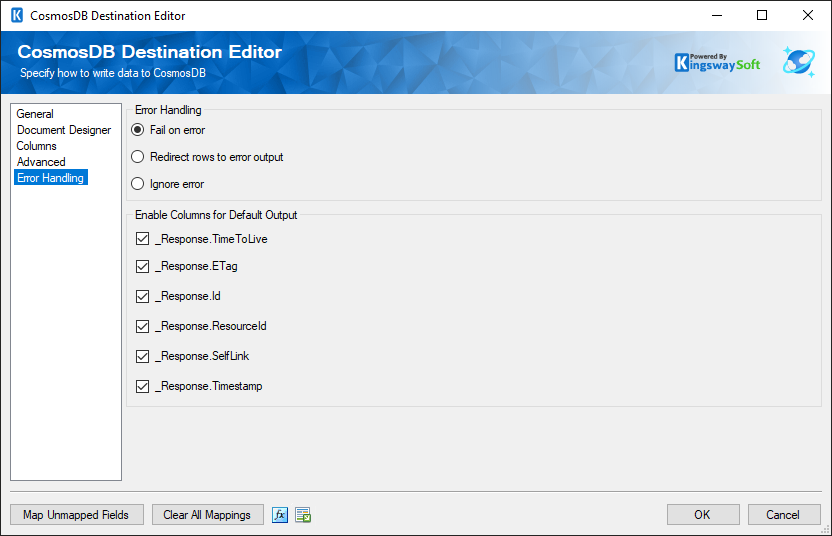

CosmosDB Destination - Error Handling Page

There are three options available.

  1. Fail on error
  2. Redirect rows to error output
  3. Ignore error

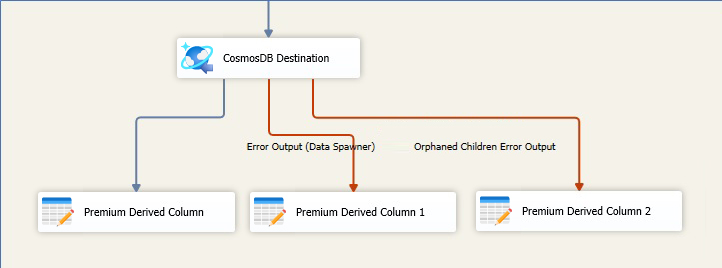

When the Redirect rows to error output option is selected, rows that failed to write to the target CosmosDB instance will be redirected to the 'Error Output({PrimaryInputName})' output of the Destination Component; rows from the Child Input that failed to find the parent records will be redirected to the 'Orphaned Children Error Output' output of the Destination Component. As indicated in the screenshot below, the blue output connection represent rows that were successfully written, and the red 'Error Output{PrimaryInputName}' and 'Orphaned Children Error Output' connection represents rows that were erroneous.

  • Error Output({PrimaryInputName})
    • ErrorCode: Contains the error code that is reported by the CosmosDB instance or the component itself
    • ErrorColumn: Contains the name of the column that is causing the error. Note that this column is not always populated
    • ErrorMessage: Contains the error message that is reported by the CosmosDB instance or the component itself
  • Orphaned Children Error Output
    • ErrorCode: Contains the error code that is reported by the CosmosDB instance or the component itself from the Child Inputs
    • ErrorColumn: Contains the name of the column that is causing the error from the Child Inputs. Note that this column is not always populated
    • Input Name: Contains the name of the Child Input that is having an issue.
    • Column Name: Contains the name of the column that is having an issue in the specific Child Input.
    • Column Value: Contains the value of the column that is having an issue in the specific Child Input.
    • Parent Input Name: Contains the Parent Input name of the specific Child Input.
    • Parent Column Name: Contains the name of the column that is having an issue in the specific Parent Input.

CosmosDB Destination - Error Output

Note: Use extra caution when selecting Ignore error option, since the component will remain silent for any errors that have occurred.

In the Error Handling page, there is also an option that can be used to enable or disable the output fields for the destination component default output.

Note: If you don't plan to use this field for any further processing it is recommended to disable it. This is so you don't get any warnings from SSIS indicating that the field is never used and it will also provide slightly better performance.
