Using the OneDrive Connection Manager
The OneDrive Connection Manager is an SSIS connection manager component that can be used to establish connections with OneDrive.
To add a OneDrive connection to your SSIS package, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection.." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "OneDrive" item to add the new OneDrive connection manager.
The OneDrive Connection Manager contains the following three pages which configure how you want to connect to OneDrive.
- General
- Advanced Settings
- More Info

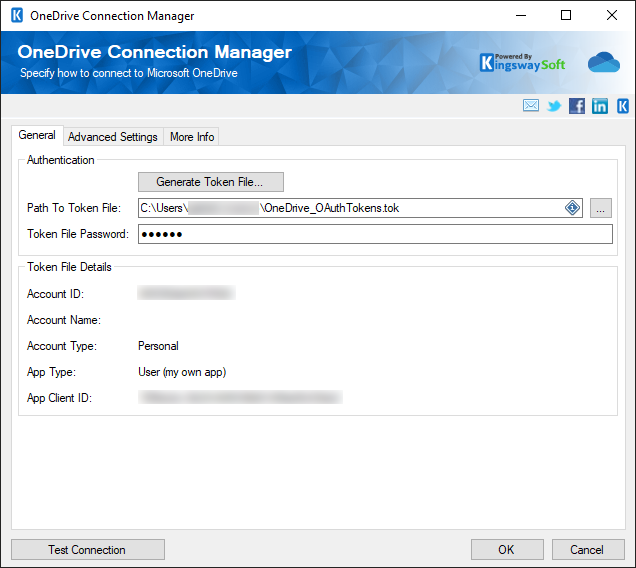

General Page
The General page on the OneDrive Connection Manager allows you to specify general settings for the connection.
- Authentication
-

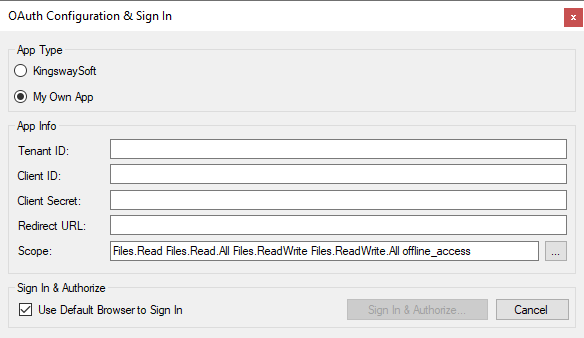

- Generate New Token File
-
This button will open a dialog in order to generate a new Token file
- App Type
-
- KingswaySoft
-
The Connection Manager will use the Client Id and Secret that is provided by KingswaySoft for your convenience when setting up the connection, it should NEVER be used for production purposes.
- My Own App
-
Selecting this option will allow you to use your own Client ID and Secret to connect to OneDrive.
- App Info
-
- Client ID
-
The Client Id option allows you to specify the unique ID which identifies the application making the request.
- Client Secret
-
The Client Secret option allows you to specify the client secret belonging to your app.
- Redirect URI
-
The Redirect Url option allows you to specify the Redirect Url which was assigned to your app.
- Sign In & Authorize
-
- Use Default Browser to Sign In
-
When this option is checked the Sign In & Authorize button will open your default web browser in order to complete the OAuth authentication. When this option is unchecked, the Sign In & Authorize button will complete the entire OAuth authentication process inside of the toolkit.
- Sign In & Authorize
-
This button allows you to log in to the service endpoint and authorize your app to generate a token.
- Signed In Account Details
-
- Account ID
-
Displays the OneDrive Account ID to which the token file will belong.
- Account Name
-
Displays the OneDrive Account Name to which the token file will belong.
- Account Type
-
Displays the OneDrive Account Type to which the token file will belong.
- Token File
-
- Password
-
This option allows you to assign a new password for the token file which will be created.
- Path to Token File
-
This option allows you to specify the path to the token file on the file system.
- Token File Password
-
This option allows you to specify the password of the selected token file.
- Token File Details
-
- Account ID
-
Displays the OneDrive Account ID with which the token file was created.
- Account Name
-
Displays the OneDrive Account Name with which the token file was created.
- Account Type
-
Displays the OneDrive Account Type with which the token file was created.
- App Type
-
Displays the client application Type with which the token file was created.
- App Client ID
-
Displays the client application ID with which the token file was created.
- Impersonate As
-
This option allows you to impersonate the connection as a different user by providing a User Principle Name or UserId. However, in order to access other users' OneDrive account, the OneDrive business user has to be an Office Global Admin. The Global Admin user needs to enable OneDrive access for the user in the Office 365 Admin portal.
- Test Connection
-
After all the connection information has been provided, you may click the Test Connection button to test if the connection settings entered are valid.
Advanced Settings Page
The Advanced Settings page on the OneDrive Connection Manager allows you to specify some advanced and optional settings for the connection.
- Proxy Server Settings
-
- Proxy Mode (since v3.0)
-
The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.
- No Proxy
- Auto-detect (Using system-configured proxy)
- Manual
- Proxy Server
-
Using the Proxy Server option allows you to specify the name of the proxy server for the connection.
- Port
-
The Port option allows you to specify the port number of the proxy server for the connection.
- Username (Proxy Server Authentication)
-
The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.
- Password (Proxy Server Authentication)
-
The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.
Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.
- Misc
-
- Timeout (secs)
-
The Timeout (secs) option allows you to specify a timeout value in seconds for the connection. The default value is 120 seconds.
- Upload Chunk Size (since v6.0)
-
The Upload Chunk Size option allows you to specify the size of the file content to be divided to upload large files sequentially.
- Download Chunk Size (since v21.2)
-
Specify the Chunk Size to download large files from OneDrive in parts.
- Retry on Intermittent Errors
-
This is an option designed to help recover from possible intermittent outages or disruption of service. It prevents the integration process from stopping due to temporary issues. Enabling this option will allow service calls to be retried upon certain types of failure. A service call may be retried up to 3 times before an exception is fired. Retries occur after 0 seconds, 15 seconds, and 60 seconds.
Warning: We have designed our retry feature carefully such that the retry should only occur when it is deemed safe to do so; however, in some occasions, such retry service calls could result in the creation of duplicate data.

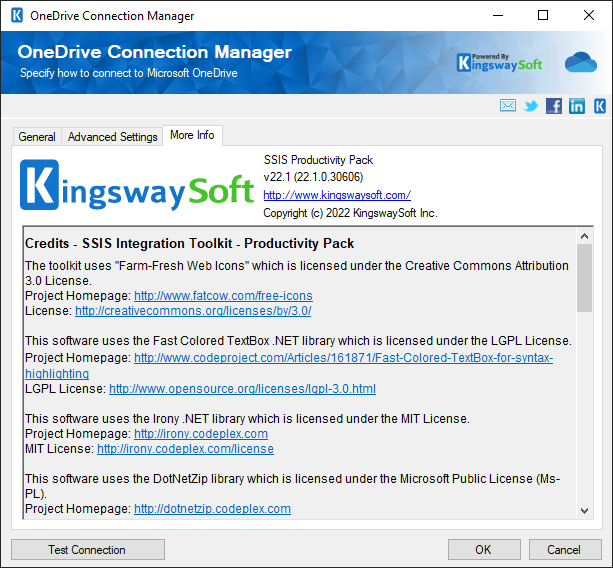

More Info Page
The More Info page shows some basic information about the toolkit. On this page, you can find the version information of the toolkit.
