Installation

To install and run SSIS Integration Toolkit for HubSpot, your system must have the following components installed.

  • A supported SSIS design-time or run-time, which can be one of the following:
    • Azure-SSIS Integration Run-time
    • SSIS 2022
    • SSIS 2019
    • SSIS 2017
    • SSIS 2016
    • SSIS 2014
    • SSIS 2012
    • SSIS 2008 R2
    • SSIS 2008
    • SSIS 2005 (No longer supported since v6.0)

    For SSIS run-time, the installation should be done by using the corresponding SQL Server installation media (most likely in CD/DVD format), and you must select the "Integration Services" component during the installation (as shown below).

    Integration Services Runtime Selection

    Note that when using SQL Server 2014, a cumulative update is required (a recent service pack, such as one of the following, is preferred) in order to run our software during run-time.

    For SSIS design-time, you should be installing the version of SSDT (SQL Server Data Tools) or BIDS (Business Intelligence Development Studio) that aligns with the SQL Server version that you plan to use for your final deployment (the run-time).

    Target Server Design Time
    Azure-SSIS IR Any one of the following:
    SSIS 2019 Any one of the following:
    SSIS 2017 Any one of the following:
    SSIS 2016 Any one of the following:
    SSIS 2014 Any one of the following:
    • SSDT for Visual Studio 2019
      • Packages created using SSDT 2019 need to have their project's TargetServerVersion setting set to "SQL Server 2014" in order to work with SSIS 2014.
    • SSDT for Visual Studio 2017
      • Packages created using SSDT 2017 need to have their project's TargetServerVersion setting set to "SQL Server 2014" in order to work with SSIS 2014.
    • SSDT for Visual Studio 2015
      • Packages created using SSDT 2015 need to have their project's TargetServerVersion setting set to "SQL Server 2014" in order to work with SSIS 2014.
    • SSDT-BI for Visual Studio 2013
    SSIS 2012 Any one of the following:
    • SSDT-BI for Visual Studio 2012 (recommended; most reliable)
    • SSDT for Visual Studio 2019 (not recommended due to potential compatibility issues with ISV solutions)
      • Packages created using SSDT 2019 need to have their project's TargetServerVersion setting set to "SQL Server 2012" in order to work with SSIS 2012.
    • SSDT for Visual Studio 2017 (not recommended due to potential compatibility issues with ISV solutions)
      • Packages created using SSDT 2017 need to have their project's TargetServerVersion setting set to "SQL Server 2012" in order to work with SSIS 2012.
    • SSDT for Visual Studio 2015
      • Packages created using SSDT 2015 need to have their project's TargetServerVersion setting set to "SQL Server 2012" in order to work with SSIS 2012.
    SSIS 2008 R2 or earlier The Business Intelligence Development Studio that is shipped with the installation media of the corresponding SQL Server version.

  • Windows Operating System

    Windows operating system requirement largely depends on the version of SSIS run-time or design-time selected. We don't have any additional requirements in terms of the Windows operating system as long as it satisfies the minimum requirements of SSIS run-time or design-time. The general guideline is the newer the operating system is, the better. In summary, our software should work for the following Windows operating systems.

    • For desktop systems (mostly for development workstations)
      • We generally recommend Windows 10, version 1507 or greater.
      • Windows 8.1, 8, or 7 should work fine with our software installation which supports most SSDT versions and SQL Server 2016 or below, but we highly recommend you upgrade to Windows 10 because of their support status with Microsoft.
    • For server systems (mostly for run-time deployments)
      • We generally recommend Windows Server 2016 or greater (Including Windows Server 2019 and potentially future Windows Server versions).
      • Windows Server 2012 or Windows Server 2012 R2 should work fine for SSIS versions up to 2016.
      • Windows Server 2008 should work fine for SSIS versions up to 2014, but we highly recommend upgrading to a more recent version due to its support status with Microsoft.
      • If working with SSIS 2008, it might be possible to work with Windows Server 2003 R2 (even Windows XP for development workstation), but it is definitely not recommended, and neither do we officially support such installations. In such cases, Windows Installer 4.5 needs to be installed by downloading it from the Microsoft website.
  • .NET Framework
    • Our software requires the installation of .NET Framework 4.5.2 or above
      • For SSIS 2016 or above, .NET Framework 4.6 (or above) is generally a prerequisite, no additional installation is required.
      • For SSIS 2014 or lower, you may turn on the .NET Framework feature or install it by downloading it from the Microsoft website.
    • When working with SQL Server 2008 or 2008 R2, .NET Framework 3.5 is required, which is generally installed along with SQL Server installation.

When you have confirmed that your system satisfies the above prerequisites, you can navigate to the KingswaySoft website at https://www.kingswaysoft.com to download the installation package.

download options

After you have downloaded the package, you can install the software by following the installation wizard.

Working with SSIS Toolbox

SSIS Toolbox is the first place that you will be looking for our components to be added to your ETL process during the design time.

If you are working with SSIS 2012 or later, SSIS Toolbox should be automatically available during the design time once you have an SSIS package opened provided that you have our software installed properly. If you are not seeing the SSIS Toolbox, you would either click the SSIS Toolbox menu option under the SSIS menu, or click the SSIS Toolbox icon in the design window's upper right corner as shown below.

SSIS Toolbox Buttons

Note: When working with SSIS Toolbox, you need to make sure that you are in the right view in order to see the right components. For instance, if you are looking for a data flow component, you need to make sure that you are in the Data Flow view, not the Control Flow view. Visual Studio would show different components depending on the design view that you are currently working with.

When you working with SSIS 2008, you would have to add our data flow components to the SSIS Toolbox manually. To add the data flow components, create a new data flow task if you do not have one yet and switch to the SSIS data flow page. Right-click on the toolbox area to bring up the context menu, where you can select the "Choose Items..." option as shown below.

Choose items

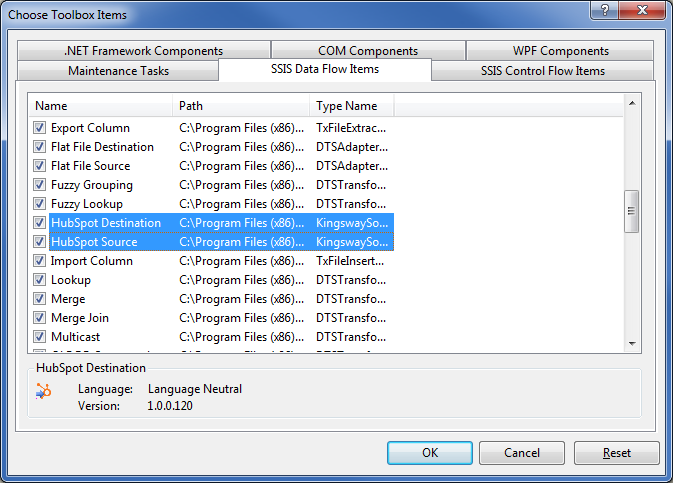

You will be presented with a window called "Choose Toolbox Items". Switch to the "SSIS Data Flow Items" tab, and select the components from the list.

Add SSIS data flow components

Once the data flow components are available in the SSIS Toolbox, you can start your ETL development by dragging them from the toolbox to the Visual Studio design surface.

Assigning Permissions

Note: This section only applies to v7.0 or prior versions.

The HubSpot Connection Manager retrieves tokens from the HubSpot app, once you give authorization. These tokens are then stored in the Registry so that once they have expired, our component will automatically request new tokens from HubSpot to minimize user effort, and replace the existing tokens with these new ones in Registry. In order to achieve this, there must be proper permissions given to the KingswaySoft folder in Registry.

Start by opening the Registry Editor, and navigate into the following folders:

  • HKEY_LOCAL_MACHINE > SOFTWARE > KingswaySoft > SSIS Integration Toolkit for HubSpot

Registry folder

  • Right-click on the SSIS Integration Toolkit for HubSpot folder in the KingswaySoft folder and select the Permissions option. Enable the following permissions to give yourself permission to modify this folder.

Give Permissions
